| Prod Model: |
JD-550 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Zinc Alloy gravity die castings

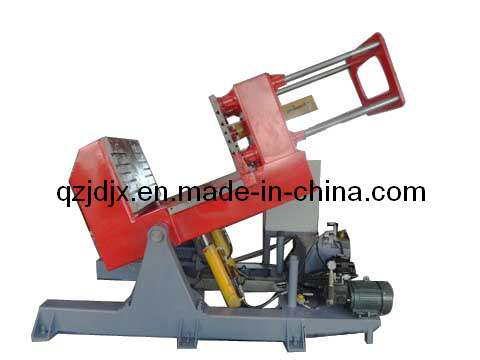

Item No.: JD-550 Tilt Gravity Die Casting Machine for Zinc Alloy.
It's a machine used in casting not only aluminum but also zinc and some other metals. But for brass or copper casting, you can refer to our products JD-AB500 or JD-AB400.
Technical parameters:
1. Controlled by a PLC control unit. (Mitsubishi).
2. Running: Hydraulic Transmission&water cooling system(A hydraulic master cylinder system can control three casting machines)...
3. Casting Function: Tilting moving casting, fixed tilting casting, fixed horizontal casting
4. Casting speed & angle are adjustable, size angle: 0-85°
5. The time of colling mold is adjustable
6. The size of die holder of fixed mold: 750mm*350mm*70mm
7. Max. Weight of mould: 250kgs
8. Having safety footboard(the set to protect the operator)
9. Power: 7.5KW.
10. Max engaging distance: 400mm
11. The space between the fixing board of the mold: 620mm
12. The pressure of engaging mold: 4200kg
13. Fuel tank capacity: 450L
14. Working oil pressure: 50-60kg/cm²
15. Solid time are adjustable.
16. The time of casting can be shown.
17. The level of pouring package can be controlled
18. If the die temperature exceeds the limits, the mold can not be engaged
19. The net weight of machine: 3500kg
20. Machine dimensions: 2600mm* 1500mm* 1700mm
On technology, we constantly innovate, and strive to high-tech and high quality;
On the process,
We strive for perfection, breakthrough tradition and strive for excellence;
On management,
We emphasize science, pursue internationalization management concept;
On the service,
We adhere to the principles, advocate the unique principle of "customer first";
Company tenet: "carefully manufacture, meticulously design, sincerely serve" for the purpose.
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
