| Prod Model: |
JD-AB500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maxium Outlined Diameter Of Mould: |
500mm |
| Maxium Weight Of Mould: |
150kg |
| Maxium Distance Of Mould Base Plate: |
510mm |
| Maxium Clamping Stroke: |
270mm |
| Angle Range Of Measure-Cast: |
0° -90°; |
| Angle Range Of Pre-Cast: |
0° -110° |
| Angle Range Of Mould Immersion: |
0° -90° |
| Oil Pressure: |
50-70bar |
| Power Capacity: |
3.75+0.75+0.75kw |
| Three Phase Power: |
380V/50Hz(as Customer's Request) |
Product Description
JD-AB500 Gravity Die Casting Machine
It's a machine used in casting not only copper but also brass. For aluminum and zinc casting, please refer to our products JDXZ-600.
Main Specifications and Technical Parameters
Maximum Outlined Diameter of Mold 500mm
Maximum Weight of Mold 150kg
Maximum distance of mold base plate 510mm
Maximum clamping stroke 270mm
Angle range of measured-cast 0° -90°
Angle range of mold immersion 0° -110°
Angle range of mold immersion 0° -90°
Oil Pressure 50-70bar
Power capacity 3.75+0.75+0.75W
Three phase power 380V/50Hz(per customers requirement)
Oil tank capacity 220L
Volume of mold immersion tank 375L+375L
Net weight of the Equipment 2000kg
Maximum dimension of the equipment 1650*2300*1720mm
Specifications
1)Passed ISO9001: 2000
2)Competitive Price
3)Top Product Quality
4)Prompt Delivery
On technology,
We constantly innovate, and strive to high-tech and high quality;
On the process,
We strive for perfection, breakthrough tradition and strive for excellence;
On management,
We emphasize science, pursue internationalization management concept;
On the service,
We adhere to the principles, advocate the unique principle of "customer first";
Company tenet: "carefully manufacture, meticulously design, sincerely serve" for the purpose.
I. Introduction
1. Application

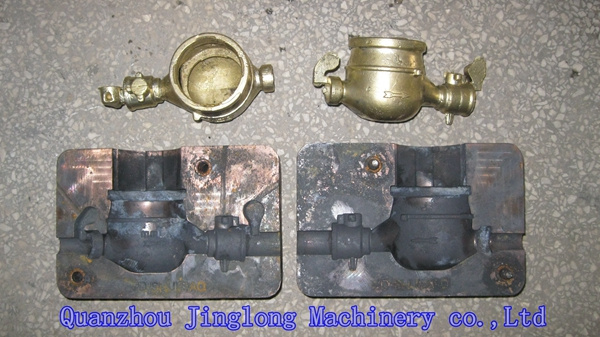

JD-AB500 gravity die casting machine is used for producing copper alloy castings of large and medium size or castings of small size whose molds contains several cavities.
2. Machine components
The machine consists of three parts, such as mechanical part, pneumatic part and electrical part. Material used in mechanical part is well-selected steel. Both pneumatic and electrical part use products of world-famous brands. Therefore we can assure you that our products are of high quality.
3. Main specifications and technical parameters:
(1) Maximum outlined diameter of mold: 500 mm
(2)Maximum weight of mold: 150 kg
(3)Maximum distance of mold baseplate: 510 mm
(4)Maximum clamping stroke: 270 mm
(5)Angle range of lateral casting: 0~90 deg
(6)Angle range of pre-casting: 0~110 deg
(7)Angle range of mold immersion: 0~90 Centigrade
(8)Oil pressure: 50~70 bar
(9)Power capacity: 5.25 kw
(10)Three phase power: 380 V/ 50Hz
(11)Oil tank capacity: 220 L
(12)Capacity of mold immersion tank: 750 L
(13)Machine weight: 2000 kg
(14)Machine size( L× W× H): 1650mm× 2300mm× 1720mm
II. About the after- sale services
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.
Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
