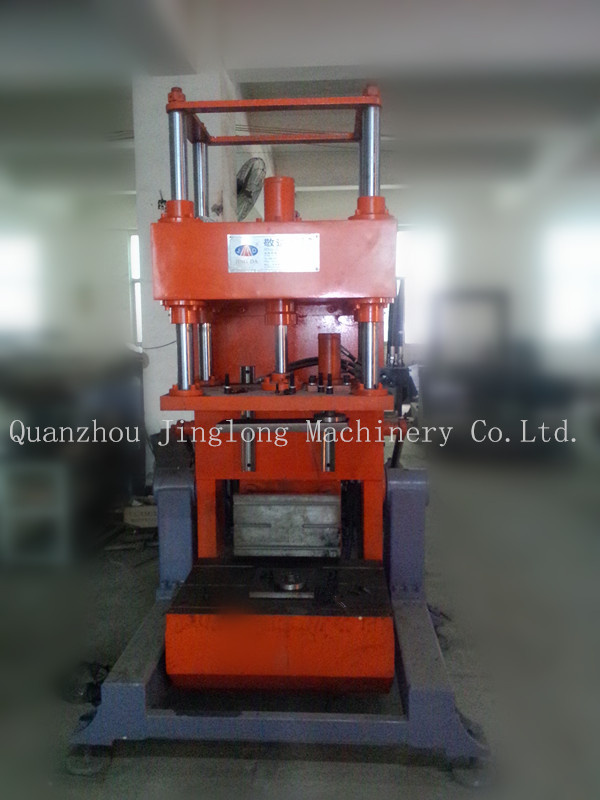

| Prod Model: |
JD800-2S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
2600 X 1500 X 1300mm |
| Machine Weight: |
1600kgs |
| Material: |
Aluminum Alloy |
| Surface Preparation: |
Polishing |
| Die Casting Machine Type: |
Gravity Die Casting |
| Die Casting Method: |
Gravity Die Casting |
Product Description
Technical parameters:
1. Maximum size of mould frame: (800*400*800)mm
2. Maximum clamping force: 45KN
3. Maximum opening mould: 38KN
4. Minimum shut height: 450mm
5. Maximum stroke of dynamic mold: 350mm
6. Top core oil cylinder output: 38KN
7. The angle of working platform rotation: 0° - 90°
8. The speed of working platform rotation: 8° /S≤ V≤ 4° /S
9. Hydraulic station power: 3.75kw
10. Hydraulic system pressure rating: 6.5Mpa
11. Hydraulic system working pressure: 5.5-10Mpa
12. Control: Manual, automatic
13. Plunger pump (Taiwan imports): 25cc/rev
14. Human-computer conversation: Siemens touch screen
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
