| Prod Model: |
JD-700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controller: |
PLC |
| Dimension: |
2600mm* 1500mm* 1700mm |
| Casting Function: |
Moving Casting, Fixed Tilting Casting, Fix |
| Casting Speed & Angle Are Adjustable, Si: |
0-85 |
| He Size Of Die Holder Of Fixed Mold: |
750mm*350mm*70mm |
| Max. Weight Of Mould: |
250kgs |
| Power: |
7.5kw |
| Max Engaging Distance: |
400mm |
| Space Between The Fixing Board Of Th: |
620mm |
| The Pressure Of Engaging Mold: |
4200kg |
| Material: |
Aluminum Alloy |
| Standard: |
China Standard |
Product Description
Over 20 Years Factory, Own the Domestic First-Class Team and Professional Design Team, Integrating production, sales and after-sales, Own Exporting License, High Quility Products, Competitive Price, OEM, Timely Delivery.
Aluminum gravity die casting

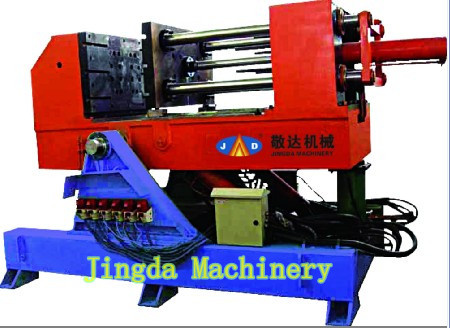

Item No.: JD-650-75A Tilt Gravity Die Casting Machine for aluminium.
It's a machine that is used in casting not only aluminum but also zinc and some other metals, but can't be used in brass or copper casting. For brass and copper casting, you can refer to our products JD-AB500 or JD-AB400
Technical parameters:
1. Controlled by a PLC control unit. (Mitsubishi).
2. Running: Hydraulic Transmission&water cooling system(A hydraulic master cylinder system can control three casting machines)...
3. Casting Function: Tilting moving casting, fixed tilting casting, fixed horizontal casting
4. Casting speed & angle are adjustable, size angle: 0-85°
5. The time of colling mold is adjustable
6. The size of die holder of fixed mold: 750mm*350mm*70mm
7. Max. Weight of mould: 250kgs
8. Having safety footboard(the set to protect the operator)
9. Power: 7.5KW.
10. Max engaging distance: 400mm
11. The space between the fixing board of the mold: 620mm
12. The pressure of engaging mold: 4200kg
13. Fuel tank capacity: 450L
14. Working oil pressure: 50-60kg/cm²
15. Solid time are adjustable.
16. The time of casting can be shown.
17. The level of pouring package can be controlled
18. If the die temperature exceeds the limits, the mold can not be engaged
19. The net weight of machine: 3500kg
20. Machine dimensions: 2600mm* 1500mm* 1700mm
| Tilt Gravity Die Casting Machine |
| Device | Controlled by a PLC control unit. (Mitsubishi) |
| The size of die holder of fixed mold | 750mm*350mm*70mm |
| Max. weight of mould | 250kgs |
| Power | 7.5KW. |
| Max engaging distance | 400mm |
| The space between the fixing board of the mold | 620mm |
| The pressure of engaging mold | 4200kg |
| Fuel tank capacity | 450L |
| Working oil pressure | 50-60kg/cm2; |
| Running | Hydraulic Transmission& water cooling system(A hydraulic master cylinder system can control three casting machines) |
| Casting Function | Tilting moving casting, fixed tilting casting, fixed horizontal casting |
| The net weight of machine | 3500kg |
| Machine dimensions | 2600mm* 1500mm* 1700mm |
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
