| Prod Model: |
ANSI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2 to 56 Inches |
| Pressure: |
ANSI Class 150 to 2500 |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
| Standard: |
ANSI |
| Type: |
Welding Flange |

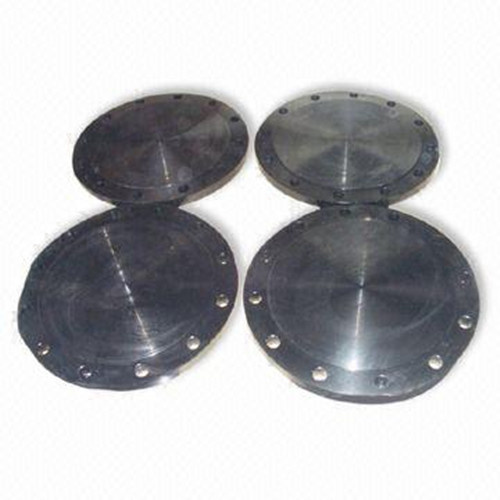

Product Description
Type: Blind Flange
Materials: Forged Steel
ASTM A105, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A516.60
A694 (F42, F46, F48, F50, F52, F56, F60, F65, F70)
A182 F304/304L, F316/316L, F316H, F310, F321, A182 F11, F22,
Standards: ANSI
Pressure: ANSI class 150 to 2500
Size range: 1/2 to 56 inches (DN 15 to DN 1400)
Used in: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
|
FLANGE STANDARD |
PRESSURE RATING |
TYPE |
FACING |
MATERIAL |
|
ANSI B16.5 |
CLASS 150 300 400 600 900 1500 2500 LBS |
SO WN SW TH LJ BL LWN |
RF
FF
RTJ
etc |
ASTM SA105/105N
A350 LF2 CL1/CL2
A694 F45/52/65,
s235jr C22.8;
A182 F304/304L
A182 F316/316L
A182 F317L
A182 F310 F321 F347;
A182 F5 F9 F11
F51 F53 F55 F60
F304H F316H F317H,
C276
INCONEL 600 625;
and etc.. |
|
ANSI B16.47-A MSS |
CLASS 150 300 400 600 900 LBS |
WN BL |
|
ANSI B16.47-B API |
CLASS 75 150 300 400 600 900 LBS |
|
ANSI/ASME B16.36 |
CLASS 300 400 600 900 1500 2500 LBS |
ORIFICE |
|
ANSI/ASME B16.48 |
CLASS 150 300 400 600 900 1500 2500 LBS |
FIG.8
SPACER AND BLANK
SPECTACLE |
|
AWWA C207 |
CLASS B & D TABLE 2/3, CLASS E TABLE 4 |
SO PL BL |
|
EN 1092-1 |
PN 2.5 6 10 16 25 40 63 100 160 250 320 400 |
PL LOO BL WN SO TH |
|
BS 4504 |
PN 2.5 6 10 16 25 40 |
PL WN TH BL SO |
|
DIN |
PN 6 10 16 25 40 |
PL WN TH BL LOO SO |
|
UNI |
PN 6 10 16 25 40 |
PL WN TH BL LOO |
|
SABS/SANS 1123 |
CLASS 600 1000 1600 2500 4000 KPA |
WN PL TH SO BL |
|
JIS B2220/KS |
5K 10K 16K 20K 30K 40K |
SOP/PL SOH/SO BL |
|
GOST |
PN 1 1.6 2.5 4 6.3 10 |
PL WN BL |
|
AS |
TABLE D E F H |
PL SO BL |
Hebei Mingda International Trading Company is a trading company which is specialized in
Castings, forgings and machinery parts.
We have deep business interaction with manufactures in major cities of China, so we are quite
Flexible and confident to be any kind of casting products to be able to meet
Ourcustomers'request on quanlity and delivery time.
Our products include all kinds of raw castings to be made of ductile iron, grey iron, brass,
Stainless steel and aluminums, machined castings and forged parts. To make these parts
According to the customers' drawings, we have relative suitable production craft and
Equipments, such as resin sand, sand mould, hot core boxes, lost-wax, lost -foam and so on.
Specially for hydrant bodies and valves' bodies, we have collected rich experience for these
Products in the past 16 year's actual production, Now we are proud of our products with good
Surface and high quality material. Whatever, we have been trying our best to provide our
Customers with better quality castings by improving production crafts and more careful quality
Control.
Apart from buyers' requirements, we also have our own very strict quality assurance system,
That makes sure the buyer's demand more significant and it could be done exactly according to
Our customres'required Quality Standards. This saves much time and money for both sides.
From founded to now, our products arehighly recognized by our customers, Meantime we win a
Good reputation in the casting and machinery industry whoever from customers or our partners.
Now our products are mainly exporting to Germany, Sweden, UK, Denmark, France, USA,
Middle-East, and so on.
Looking Forward To Receiving Your Kind Favorable Reply At Your Earliest!
