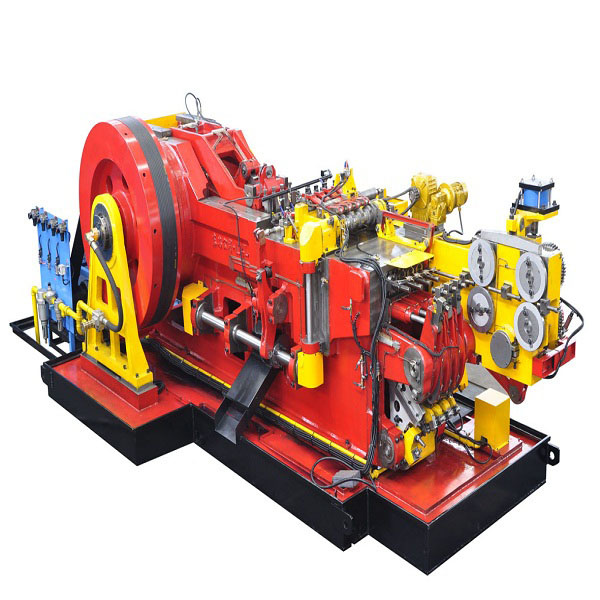

Automatic High Speed Screw Making Machine
| Price: |
US $ 150000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DBF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description

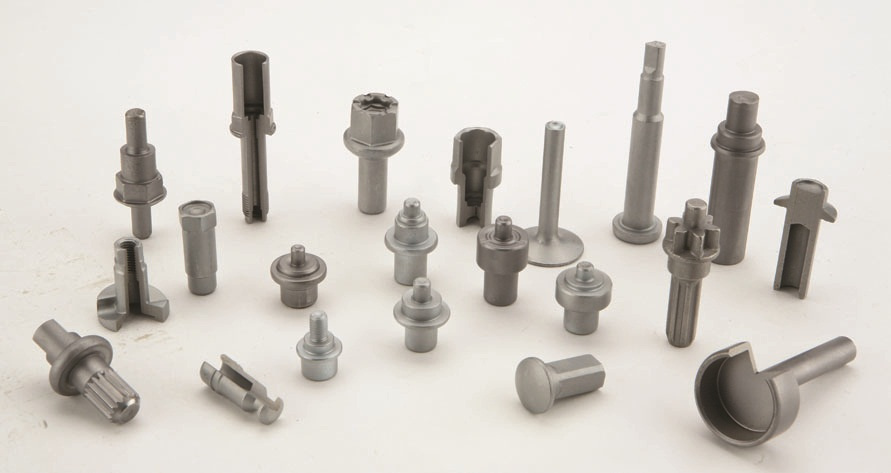

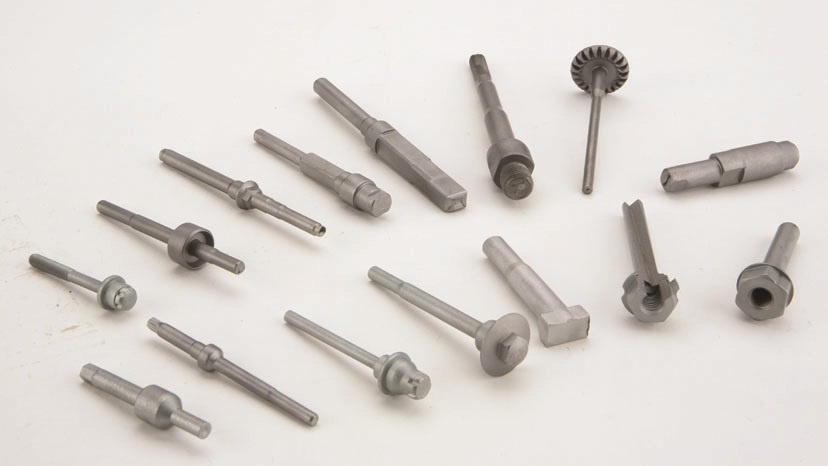

Auto Multi-station Cold forging fomer is a specialized machine tool with high efficency and automation among forging machinery. Cold forging fomers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. The formers are also widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation,steamer,machinery, rail traffic, vehicle,motorcycle,bicycle,sewing machine, construction,furniture, light industry and daily
necessities, etc.
| Model | Unit | RBP-106S | RBP-136S | RBF-166S | RBF-206L |
| Forging Station | NO. | 6 | 6 | 6 | 6 |
| Forging force | Kgs | 110.000 | 140.000 | 230.000 | 390.000 |
| Max.cut-off dia. | mm | 16 | 18 | 23 | 30 |
| Max.cut-off length | mm | 135 | 190 | 190 | 240 |
| Output rate | pcs/min | 80-120 | 60-90 | 55-90 | 40-70 |
| P.K.O. Stroke | mm | 35 | 50 | 45 | 46 |
| K.O. Stroke | mm | 118 | 175 | 178 | 220 |
| Main ram stroke | mm | 190 | 270 | 274 | 346 |
| Main motor power | Kw | 37 | 45 | 75 | 90 |
| Overall dims. of cut off die | mm | 52x75L | 567x69L | 74x105L | 85x120L |
| Overall dims. of punch die | mm | 53x115L | 60x130L | 75x185L | 90x215L |
| Overall dims. of main die | mm | 75x135L | 86x190L | 108x200L | 125x240L |
| Die pitch | mm | 90 | 110 | 129 | 140 |
| Approx. weight | T | 24 | 35 | 56 | 80 |
| Applicable bolt dia | mm | 6-10 | 8-12.7 | 10-16 | 12-20 |
| Shank length of blank | mm | 15-110 | 20-160 | 20-160 | 25-200 |
HARBIN RAINBOW TECHNOLOGY Co., Ltd. Comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation, now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.
We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service, our main products include wire drawing machine, Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.
With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and invested in following companies: Zhejiang Shengrui Machinery Co., Ltd., Zhejiang Dongrui Machinery Industry Co., Ltd., Suzhou Industrial Park Wuzhong Electric Furnace Manufacturing Co., Ltd., and Wuxi Pingsheng Science & Technology Co., Ltd., etc. We do these factories' foreign market developing and have received highly praises from a lot of customers.
We have established reputation in countries such as India, Iran, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
We have the confidence, backed by our professional knowledge and experience in the mechanical and electrical business, to develop the foreign markets for our home enterprises and to open up the Chinese markets for the companies abroad.
We abide by the principles of honesty, credibility, and mutual-benefit, and do our best to serve clients and customers both at home and abroad. With our top-notch professional knowledge and trading experience, we have seen our market development ability and actual business growth with an increasingly faster pace. We sincerely look forward to working with you to facility your company's foreign market development and China market expansion. Let's build a great future together!
