| Prod Model: |
RF-BS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Bemo Sheet Roll Forming Machine |
| Controlling System: |
PLC Computer Control |
| Place Of Origin: |
Jiangsu, China (Mainland) |
| Brand Name: |
Suhang |
| Voltage: |
380V |
| Dimension(L*W*H): |
About2.1m*1.3m*1.2m |
| Delivery Time: |
50 Days After Deposit |
| Forging Forming Method: |
Mold Forging |
Product Description

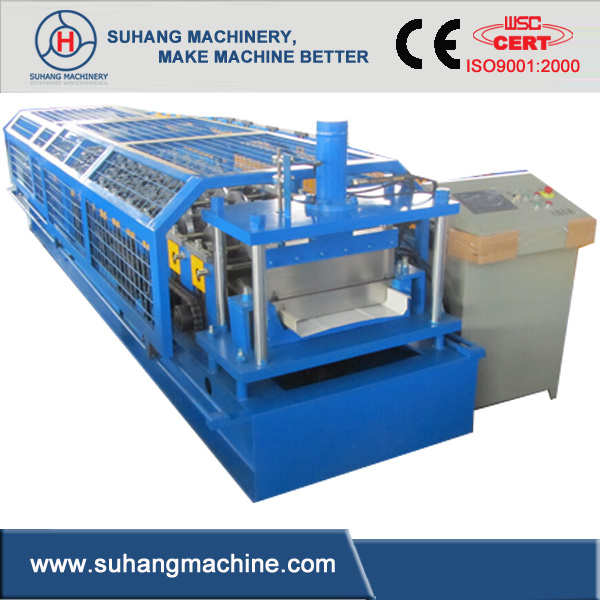

Bemo sheet roll forming machine
Features:
1. Controller: PLC
2. Import components
3.12 months warranty
4. Factory in Wuxi
Package Details
Our galvanized highway guardrail roll forming machine is fixed in the container with ropes so that the machine is kept from being collided, and treatment for rust-proof, covered by plastic film for the whole machine, spare parts and some small parts packed in wooden box.
Warranty, Year warranty
During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
| Technical Parameter |
| metarial thickness | 0.7-1.2mm for color coated steel |
| forming speed | 4-8m/min |
| roller stands | 16 stands |
| roller material | 45# steel, coated with chrome, heat treatment HRC58-62 |
| shaft diameter and material | 70, 45# steel, heat treatment HRC58-62 |
| main motor power | 7.5Kw |
| hydraulic cutting power | 4Kw |
| Hydraulic pressure | 12Mpa |
| power supply | 380V, 50Hz, 3Phase |
| cutting material | Cr12 |
| control system | PLC with touch screen |
| main machine weight | 6-7Tons |
| Transmission type | one inch chain drive |
