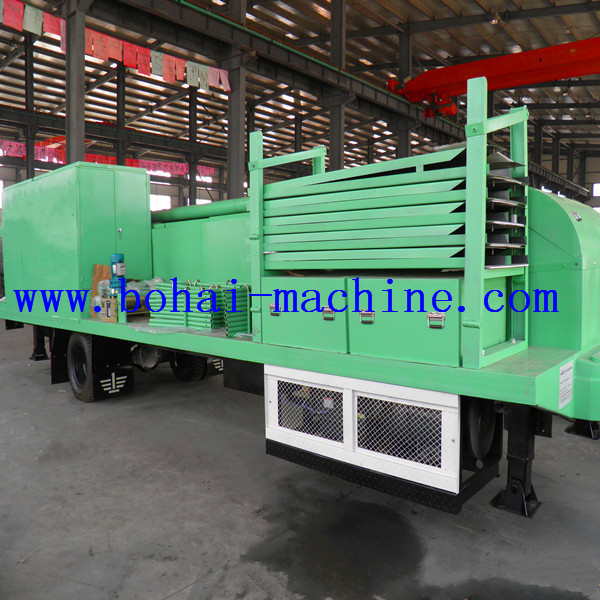

Bh Curve Roof Automatic Forming Machine (BH240)
| Price: |
US $ 10-100000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BH240 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Controlling System: |
PLC&Manual |
| Total Motorpower: |
17.9kw |
| Material Of Cutting Blade: |
Cr12 MOV |
| Material Of Roller Shaft: |
45# Steel, Galvanized |
| Thickness Of The Coil: |
0.6-1.5mm |
| Material Of Rollers: |
45# Steel, Quenched with Hard Chrome |
| Proper Span: |
14-45m |
| Type: |
Roll Forming Machine |
Product Description
1. Our machine's rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
2. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
3. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
4. Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
5. Our hoisting tool is light and handy; The weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
|
Main Technical Specification: |
|
Size: 8900mm × 2230mm × 2300mm |
Total Weight: about 15000KG |
|
Total MotorPower: 17.9KW |
|
Bending power: 3.0kw+1.1kwx2; Sewing power: 2.2kw |
Cutting power: 4.0kw;
Forming power: 7.5kw |
Working Speed : Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 16m/min |
|
Feeding Width: 1000mm |
Effective Width: 610mm |
|
Step of rollers: 14 steps |
Controlling system: PLC&Manual |
|
Material of cutting blade: Cr12moV |
Sheet operating factor: 61% |
|
Thickness of the coil: 0.6-1.5mm |
Material of roller shaft: 45# steel, galvanized |
|
Material of rollers: 45# steel, quenched with hard chrome |
Type of cutting: Roll-formed and length-set cutting |
|
Electric Standard: 380V / 50 HZ / 3 PHASES |
The depth of the groove: 243mm |
|
Proper span : ≤39m |
Ship Container: 40'HQ x 1 |
Yingkou Bohai Machinery Equipment Manufacture Co., Ltd. was founded in 2000. On 15000m2 occupancy area, more than 100 people work together to render our service for you, including 10 highly qualified technicians. We have an excellent R &D team and complete management system, always dedicated to providing stable, high efficient and precise equipment for International Clients. With high quality, reasonable price and "customer-oriented" service, we are already the recognized leader in the area and also supplier for many manufactures and trading companies.
Our main products are: Steel-drum production line, Steel drum, BH-240/BH-120 Arch sheet roll forming machine, Multi-shape Building Machine, Screw-jointed Equipment, Arch Sheet Project, MSBM Project, Screw-jointed Project, KR 18 Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, 840 Corrugated Sheet Roll Forming Machine, Corrugated Roof Sheet Forming Machine, Concealed Roof Sheet Forming Machine, Steel Decking Roll Forming Machine, C/Z/U/M Shaped Steel Purlin Forming Machine, Highway Guardrail Roll Forming Machine, Sandwich Panel Roll Forming Machine, Lifting Machine, Unlimited Length Ridge Tile Forming Machine, Sheering Machine, Window and Door Taping Machine, Flat Sheet Bending Machine, Pipe Bender Machine, Bending Machine, Slitting Machine, Slitting Line, SM-40 Spiral Steel Silo Forming Machine, PU Spray and Perfusion Equipment, Colored Steel Sheet Coils, etc.
We can also supply all the relevant equipments, accessories and raw material for steel structure projects. Meanwhile one efficient construction team is equipped to design and build various large steel structure projects for you at any time.
Upholding the company philosophy of "high quality casts the brand, good faith will create the future", with equipments of high quality and cost effective, we have already established favorable relationships and won a good reputation with clients from more than 60 countries in the world.
In the future, the company will continue to hold the philosophy, LED by market demand, make products finest, optimize service, promote BOHAI brand image. Sincerely wish to strengthen business relations with friends all over the world, with your common development is our eternal pursuit.
