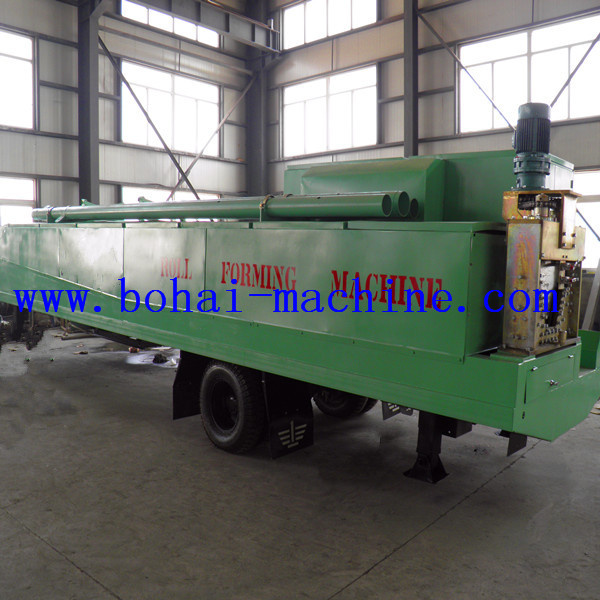

Bh No-Girder Curve Roof Roll Forming Machine
| Price: |
US $ 10-100000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Controlling System: |
PLC&Manual |
| Total Motorpower: |
17.9kw |
| Material Of Cutting Blade: |
Cr12 MOV |
| Material Of Roller Shaft: |
45# Steel, Galvanized |
| Thickness Of The Coil: |
0.6-1.5mm |
| Material Of Rollers: |
45# Steel, Quenched with Hard Chrome |
| Proper Span: |
14-45m |
| Type: |
Roll Forming Machine |
Product Description
1. Our machine's rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
2. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
3. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
4. Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
5. Our hoisting tool is light and handy; The weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
|
Main Technical Specification: |
|
Size: 8900mm × 2230mm × 2300mm |
Total Weight: about 15000KG |
|
Total MotorPower: 17.9KW |
|
Bending power: 3.0kw+1.1kwx2; Sewing power: 2.2kw |
Cutting power: 4.0kw;
Forming power: 7.5kw |
Working Speed : Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 16m/min |
|
Feeding Width: 1000mm |
Effective Width: 610mm |
|
Step of rollers: 14 steps |
Controlling system: PLC&Manual |
|
Material of cutting blade: Cr12moV |
Sheet operating factor: 61% |
|
Thickness of the coil: 0.6-1.5mm |
Material of roller shaft: 45# steel, galvanized |
|
Material of rollers: 45# steel, quenched with hard chrome |
Type of cutting: Roll-formed and length-set cutting |
|
Electric Standard: 380V / 50 HZ / 3 PHASES |
The depth of the groove: 243mm |
|
Proper span : ≤39m |
Ship Container: 40'HQ x 1 |
