| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China |
| Brand: |
Bohai |
| Application: |
Construction |
Product Description
Main technical parameter:
1. Constituent part:
(1)Forming machine: Making the material bend and initial machine-shaping, meanwhile, it will bend the material to the silo required radius of curvature.
(2)Bending machine: It will roll cooperate with good molding materials bender seaming together
(3)Load bearing support: Given the right diameter of silo. Lifting of the steel silo enclose the top of load bearing support rollers, it can support the spiral rising silo.
(4)Decoiler: Moving steel coils that put on the decoiler, making steel coils can into forming machine successfully.
(5)Join frame: Joining the load bearing support, locking the required diameter of soil, making the load bearing support stable working.
2. Weight of machine parts:
(1)Forming machine— — 3300 kg
(2)Bending machine— — 3550 kg
(3)Decoiler— — 230 kg
(4)Load bearing support— — 80kg
(5)Joint Frame— — 38kg
3.
(1) Required thickness of raw material:
A, Galvanized sheet— — 1.5---3mm
B, Dark steel sheet— — 1.5---3mm
C, Chromated nickel steel sheet— — 1.5---2.5mm
D, Plastic coatings steel sheet— — 1.5---3mm
(2)Raw material width: 495mm
(3)Finished width: 350---370mm
(4)Diameter: 4m— — 25m
(5)Electrical equipment power: 9X3kw=27kw

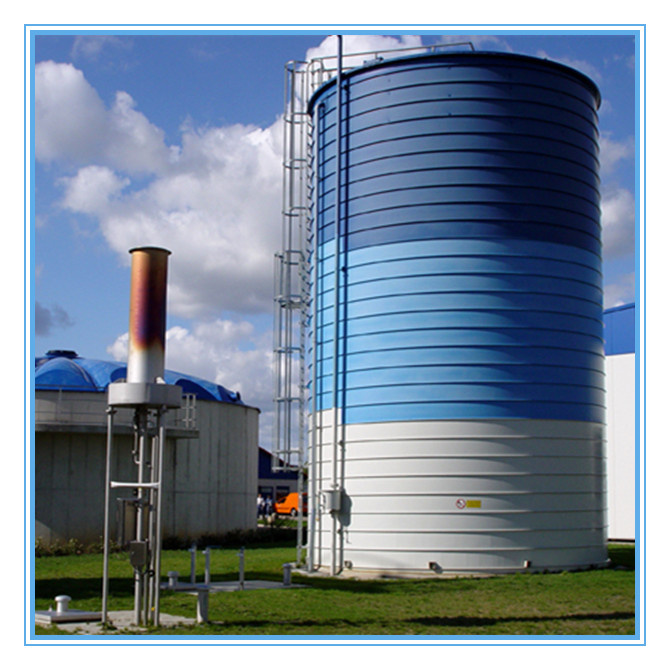

| Application: making circular metallic container |
| Working process: |
| Through the 5 forming procedures and 5 kind of steel strip forming merge suturing machine steel strip(thickness: 2-4mm; 495mm)will be merged forcedly and suture spirally to make cylinder with 4-50m of different diameters. |
| These steel cylinders are used widely: |
1. Material shape (storage): granular material, powder material, liquid material
2. Industry: grain, feed brewing, oil, medicine, food, cement, water treatment
3. Concrete variety(storage): wheat, soybean, maize, sorghum wheat flour, bulk cement fly-ash, sewage, water, chemical syrup |
| Features of Rx4.0m/m steel strip forming machine |
1. Rx4.0m/m steel strip forming merging and suturing machine units is a new type of machine in our company. It is used to produce the Circular Metallic Container, developed from LIPP-SM40 forming machine, improved and holding the same function of LIPP-SM40 forming machine.
2. Rx4.0m/m steel strip forming merging and suturing machine units also have its own advantages, such as convenient to be repaired, avoid installing with different diameter, saving the time and cost of installing. This unit is produced by the Hi-strength Alloy steel, making the operating life longer. |
