| Prod Model: |
JXR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Green |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description

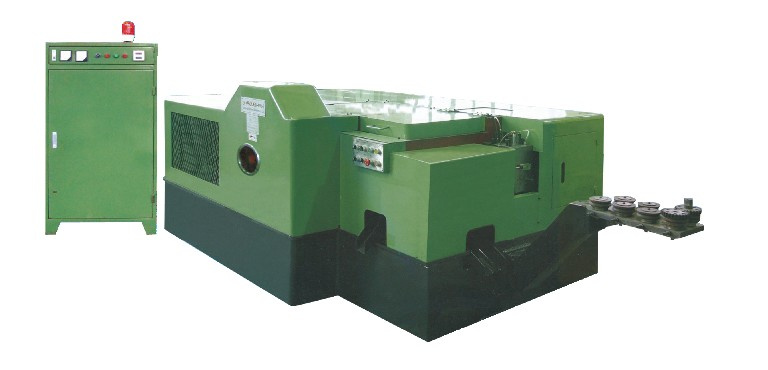

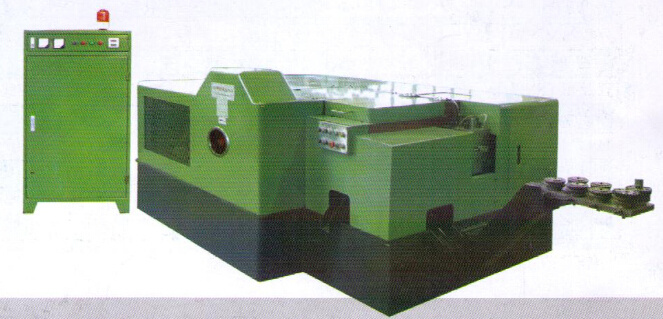

JX series mainly produce 3die 3 blow, 4 die 4 blow, 5 die 5 blow, 6 die 6 blow multi station heading machine, boltmaker machine including thread rolling unit and tapping machine. The machine has high dfficiency and consequently used to produce various fasteners, nonstandard products for automobile, motorcycle, bicycle and basically machinery work piece. Also produce nonstandard-machine in accordance with special requirement.
Production items:
Extra thick nut, flanged nut, motorcycle link pin, oil plug screw, hex socket lockup nut, squire nut, weld nut, cap nut, blind nut, chain roller, expansion anchor, bicycle and motorcycle shaped spare parts, and so on.
We have exported these machines to India, and we have service center in India, so we can provide you the best after-sale service.
For anything of the machine, please feel free to contact me.
Crystal
Hope to cooperate with you.
| Model | JX11
B-6S | JX11
B-6S-L | JX14
B-6S | JX14
B-6S-L50 | JX14B-
6S-T50 | JX14B-
7S-L50 | JX17B-
6S | JX17B-
6S-L50 | JX19
B-6S | JX19B-
6SL-50 | JX24B-
6SL-70 |
| Forging Station | 6 | 6 | 6 | 6 | 6 | 7 | 6 | 6 | 6 | 6 | 6 |
| Max. forging Dia. (mm) | 8-12 | 8-12 | 12-15 | 12-15 | 12-15 | 12-15 | 13-17 | 13-17 | 20 | 20 | 25 |
| Max. cut off dia. (mm) | 11 | 11 | 15 | 15 | 15 | 15 | 17 | 17 | 19 | 19 | 24 |
| product dia. | M4-M6 | M4-M6 | M6-M8 | M6-M8 | M6-M8 | M6-M8 | M8-M10 | M8-M10 | M10-M12 | M10-M12 | M12-M16 |
| Max. forging length (mm) | 13 | 25 | 16 | 45 | 30 | 45 | 45 | 45 | 25 | 50 | 70 |
| Die pitch (mm) | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | 80 | 80 | 100 |
| Main slide stroke (mm) | 50 | 64 | 60 | 160 | 60 | 160 | 160 | 160 | 100 | 162 | 200 |
| output (pcs/min) | 120-240 | 120-240 | 85-170 | 70-100 | 70-100 | 70-100 | 85-165 | 70-100 | 100 | 85 | 85 |
| main motor | 15HP | 15HP | 20HP | 40HP | 40HP | 40HP | 40HP | 40HP | 40HP | 50HP | 74HP |
| appr. weight (kgs) | 4000 | 4500 | 7500 | 8500 | 7500 | 9000 | 10000 | 10000 | 13000 | 15000 | 20000 |
