| Prod Model: |
JD-AB400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Clamping Stroke: |
250mm |
| Maximum Weight Of Mold: |
120kg |
| Maximum Outlined Diameter Of Mold: |
400mm |
| Angle Range Of Measured-Cast: |
0deg; -90deg; |
| Angle Range Of Mold Immersion: |
0deg; -110deg; |
| Oil Pressure: |
50-70bar |
| Oil Tank Capacity: |
160L |
| Volume Of Mold Immersion Tank: |
375L+375L |
| Net Weight Of The Equipment: |
1600kg |
| Maximum Dimension Of The Equipment: |
1300*1600*1350mm |
| Material: |
Copper Alloy |
| Standard: |
China Standard |
Product Description

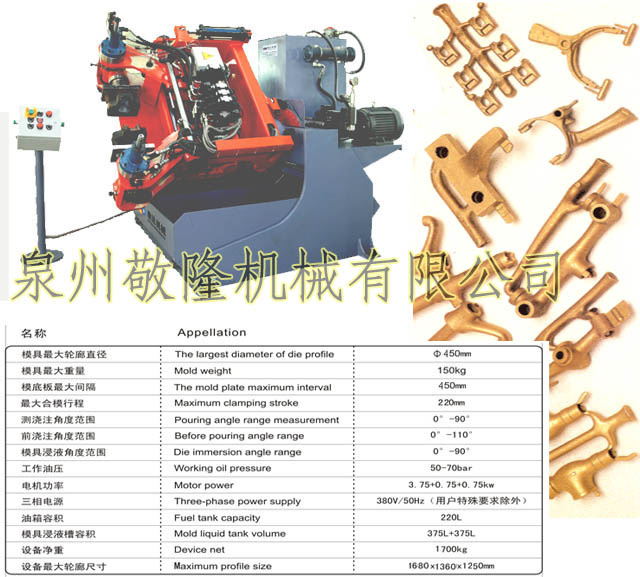

JD-AB400 Gravity Die Casting Machine
It's a machine which used in casting not only copper but also brass. And the main point, they can't used in aluminum and zinc. If you want cast zinc or aluminum, please choose our products JD-650-75A or JD-750-75A
Main Specifications and Technical Parameters
Maximum Outlined Diameter of Mold: 400mm
Maximum Weight of Mold: 120kg
Maximum distance of mold base plate: 480mm
Maximum clamping stroke: 250mm
Angle range of measured-cast: 0deg; -90deg;
Angle range of mold immersion: 0deg; -110deg;
Angle range of mold immersion: 0deg; -90deg;
Oil Pressure: 50-70bar
Power capacity: 3.75+0.75+0.75W
Three phase power: 380V/50Hz(per customers requirement)
Oil tank capacity: 160L
Volume of mold immersion tank: 375L+375L
Net weight of the Equipment: 1600kg
Maximum dimension of the equipment: 1300*1600*1350mm
JD-AB400 Gravity Die Casting Machine
|
|
| Main Specifications and Technical Parameters |
| Maximum Outlined Diameter of Mold | 500mm |
| Maximum Weight of Mold | 150kg |
| Maximum distance of mold base plate | 510mm |
| Maximum clamping stroke | 270mm |
| Angle range of measured-cast | 0° -90° |
| Angle range of mold immersion | 0° -110° |
| Angle range of mold immersion | 0° -90° |
| Oil Pressure | 50-70bar |
| Power capacity | 3.75+0.75+0.75w |
| Three phase power | 380V/50HZ(per customers requirement) |
| Oil tank capacity | 220L |
| Volume of mold immersion tank | 375L+375L |
| Net weight of the Equipment | 2000kg |
| Maximum dimension of the equipment | 1300*1600*1350mm |
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
