| Prod Model: |
JD-XZ800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
2600*1500*1700mm |
| Machine Weight: |
1600kgs |
| Material: |
Aluminum Alloy |
| Standard: |
China Standard |
Product Description

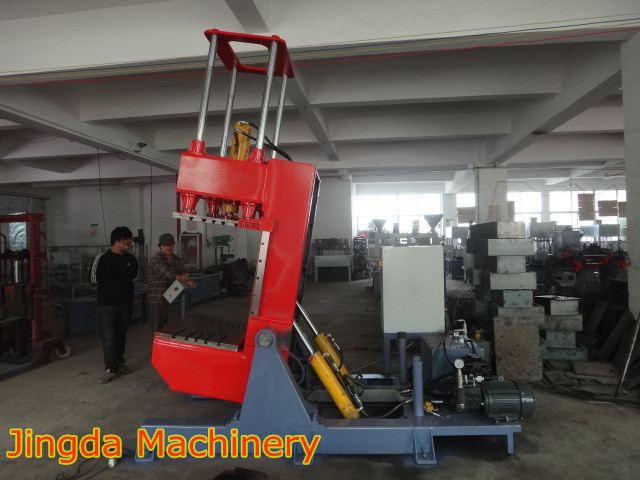

Zinc Alloy Gravity Die Casting Machine JD800
I. Introduction
1. Application
Zinc Alloy Gravity Die Casting Machine JD800 is a machine which is used in casting not only aluminum but also zinc and some other metals. For brass and copper casting, please refer to our products Gravity Die Casting Machine JD-AB500 and JD-AB400.
2. Machine components
The machine consists of three parts, such as mechanical part, pneumatic part and electrical part. Material used in mechanical part is well-selected steel. Its main components are all made of world- famous brand. Eg.: The PLC Control System is of SIEMENS brand, the relay is of OMRON, and the AC Contactor is of SCHNEIDER. Therefore we can assure you that our products are of high quality as well as favorable price.
3. Main specifications and technical parameters:
1) The mould specification: 800*600 mm
2) Minimum stroke of mould clamping: 400 mm
3) Maximum stroke of mould clamping: 800mm
4) Turing angle: 0-90 deg
5) Stroke of top mould: 100mm
6) Stroke of core- pulling: 100 (designed as requied)
7) Output volume of plunger pump: 37.8cc/ rev
8) System pressure: 0-10 pa9) Motor power: 3.75kw
10) Vertical stroke: 500 (125*500)mm
11)Flipping stroke of oil sylinder (80* 360): 360mm12) Top oil cylinder stroke 100x100: 100mm
13) Top oil cylinder stroke 80x100: 100mm (the stroke of the oil cyliinder is adjustable )
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
