Prod Model: |

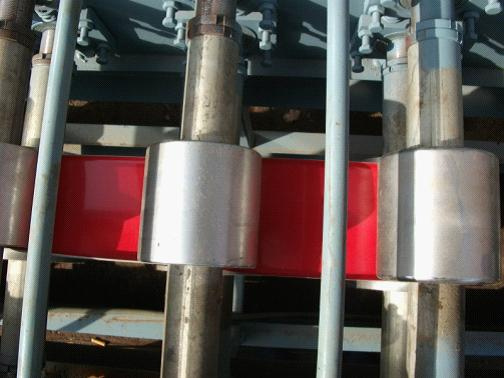

C84 gusset plate roll forming machine |
Markets: |
South America,Africa,Mid East,Eastern Asia |
Application: |
Steel Workshop |
Forming: |
Forging Steel |
Type: |
Cold Forming Sectional Steel |
Standard: |
ISO 9001 2008 |
Product Description
1. Small and flexible
2. Automatic cutting for length, automatic punching,
3. Before or after the shear shearing
Equipment name |
Pinch plate roll forming machine |
Use |
Large high altitude advertising
|
weight |
400kg
|
Materials of Equipment |
Main frame |
300H steel |
Motor power |
3KW |
Chain |
0.6inches(15.24mm) |
Axle |
diameter40 45# steel
|
Row of molding |
10 row
|
work efficiency |
Speed |
5~8m/min |
Rolling material thickness |
0.25-0.8mm |
Rolling material length |
user-defined |
Molding products width |
80mm\84mm\86mm
|
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
