| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Color: |
Can Paint as Your Requirement |
| Control System: |
Automatic CNC Control System |
| Cutting System: |
Hydraulic Shearing System |
Product Description

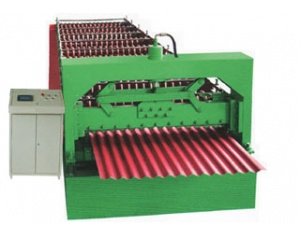

Ripple color tile forming machine
1. Technical specifications
1) Main forming machine
1. Material of shaft: 45 # steel adjustable treatment. Out diameter: Φ 75
2. Material of roller: Cr 12, quenched treatment HRC 58-60.
3. Main frame: 300 H steel
4. Thickness of medium plate: 12mm
5. Transportation system: Chain transportation
6. Thickness of chain: 6 points
7. Main motor power: 4 KW
8. Forming speed: 8000mm/min
9. Rolling thickness: 0.3-0.8mm
10. Equipment weight: 2500 kg
|
Material of blade |
Cr12, heat treatment 60-62 degrees celsius |
|
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil : 40# |
Electrical system
|
Screen display |
5.7 inches TaiDa touch screen |
|
Main computer control cabinet |
It adopts industrial computer to control. The target piece’ s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand isEURA
The seller should provide Chinese and English language screen.
|
