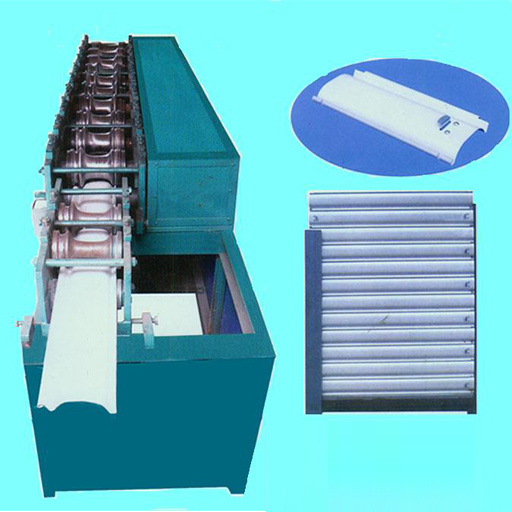

Sb Shutter Door Roll Forming Mahcine

Sb Shutter Door Roll Forming Mahcine
Price: US $ 10000-30000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 12 Months
Color: Can Paint as Your Requirement
Control System: CNC Control System
Cutting System: Hydraulic Shearing System

Product Description

Shutter door roll forming mahcine

Hydraulic shearing
Material of blade: Cr12, heat treatment 60-62 degrees celsius
Shearing system: It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40#
Electrical system
Screen display: : 5.7 inches TaiDa touch screen
Main computer control cabinet
It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: Automatic and manual one. The system is easy to operate and use.
Processing precision: Within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand isEURA
The seller should provide Chinese and English language screen.
Number  of    forming  rollers 12  row
  Roll material 45#
  Heat treatment quenching
Hard  chromium   plating Surface  degrees  0.05  hard  chromium
Rack    structure   100Channel steel welding
The  host   power 3kw
  Reducer Cycloidal  reducer
Transmission chain
Forming  speed 8m-12m/min
Made  board A3 steel 25mm
 Straightening Five axis without power Leveling straightening
Control system full-automatic PLC computer ontrol
Control the monitor display  screen
Cut off  he  mold Gr12
  Die  handle quench
rolled  materials   before  coating  galvanized  steel  sheet
thickness    0.3-0.8   mm
Cutting  system Automatic  shear
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers

Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level

Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.

The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
