| Prod Model: |
J21-80, J21-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
Presses |
| Name: |
power press |
Product Description

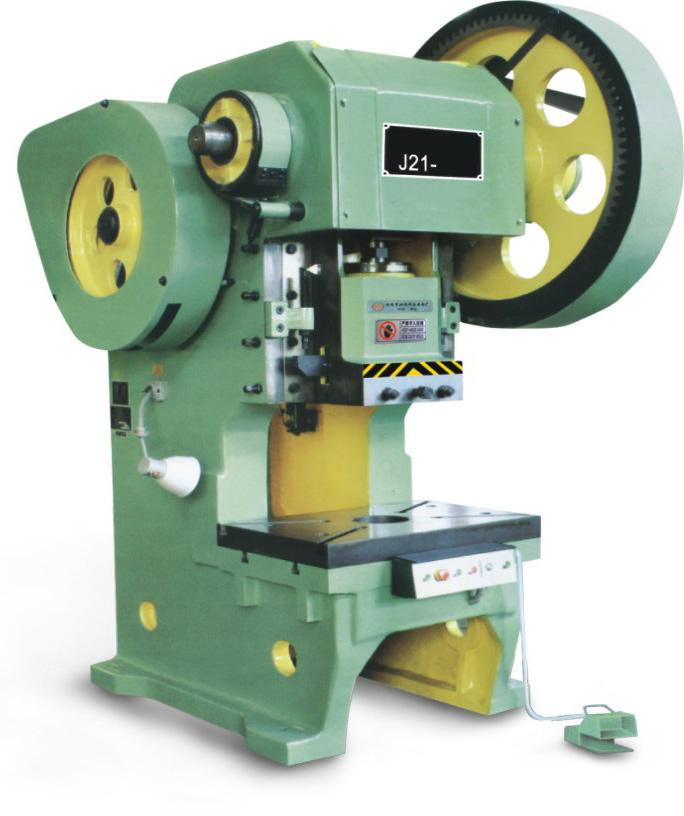

Power press
Features:
* This presses is characterized by good universal performance. Its body is of a fixed table, making the integral machine be characterized by good inflexibility and beautiful outlook.
* It adopts secondary drive, which is characterized by stable performance and lower noise. The internally inserted double rotating key clutch has single and continual operation standard to keep the slipper from "advancing". The flywheel can be rotated with a lever to adjust the slipper at the connecting condition after the main motor is stopped.
* The inserted balancer can improve running smoothness and security.
* This presses series is characterized by beautiful outlook and convenient maintenance, ease of adjustment. It is widely used for punching, blanking, cutting, bending, forming, light stretching and so on.
| Specifications | Unit | J21-80T | J21-100T |
| Nominal Capacity | KN | 800 | 1000 |
| Slide Stroke | mm | 120 | 140 |
| Slide Stroke Per Minute | times/min | 40 | 38 |
| Max. Shut Height | mm | 430 | 590 |
| Die Height Adjustment | mm | 100 | 100 |
| Throat Depth | mm | 300 | 400 |
| Distance Between Uprights | mm | 440 | 530 |
| Bolster Size | F×B | mm | 580 | 720 |
| L×R | mm | 880 | 1100 |
| Slide Bottom Size | F×B | mm | 365 | 370 |
| L×R | mm | 405 | 430 |
| Stem hole Size | Dia. | mm | 50 | 60 |
| Depth | mm | 70 | 75 |
| Bolster Thickness | mm | 80 | 100 |
| Bolster Surface Height | mm | 800 | 850 |
| Overall Dimensions | F×B | mm | 2000 | 2470 |
| L×R | mm | 1550 | 1780 |
| Height | mm | 2950 | 3380 |
| Distance Between Foundation Bolts | F×B | mm | 10000 | 1200 |
| L×R | mm | 830 | 1000 |
| Motor Power | kw | 7.5 | 11 |
| Weight (Approximate) | kg | 5800 | 10200 |
| Power Supply | | 380V 3Phase 50Hz |
