| Prod Model: |
J23-6.3, J23-10, J23-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
punching machine |
| Name: |
power press |
| Name 2: |
press machine |
| Name 3: |
presses |

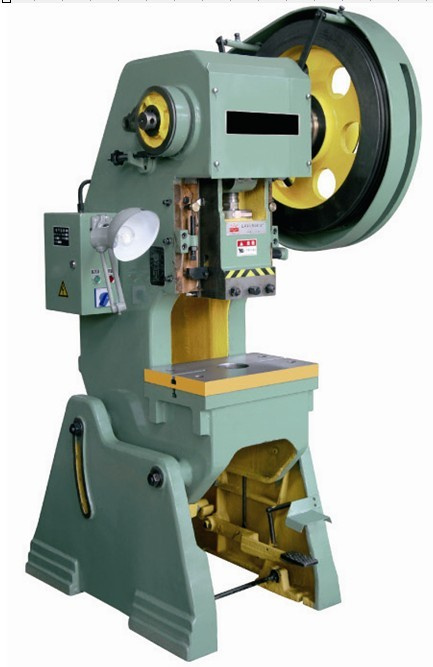

Product Description
Features:
* This presses is characterized by good universal performance. Its body can be inclined in a certain scope so that the punched finished products or wasting material can slide from the die.
* It adopts single drive, which is characterized by stable performance and lower noise. The internally inserted rotating key clutch inside has single and continual operation standard.
* The inserted balancer can improve running smoothness and security.
* This presses series is characterized by beautiful outlook and convenient maintenance, ease of adjustment. It is widely used for punching, blanking, cutting, bending, forming, light stretching and so on.
* Please do fix the foundation bolts of the presses to the ground firmly when using, to make sure the safety in production.
|
Specifications |
Unit |
J23-6.3T |
J23-10T |
J23-16T |
|
Nominal Capacity |
KN |
63 |
100 |
160 |
|
Slide Stroke |
mm |
35 |
50 |
60 |
|
Slide Stroke Per Minute |
times/min |
160 |
145 |
125 |
|
Max. Shut Height |
mm |
225 |
260 |
310 |
|
Die Height Adjustment |
mm |
30 |
35 |
45 |
|
Throat Depth |
mm |
130 |
130 |
170 |
|
Distance Between Uprights |
mm |
160 |
180 |
220 |
|
Bolster Size |
F× B |
mm |
240 |
245 |
300 |
|
L× R |
mm |
390 |
395 |
480 |
|
Slide Bottom Size |
F× B |
mm |
140 |
150 |
180 |
|
L× R |
mm |
140 |
150 |
210 |
|
Stem hole Size |
Dia. |
mm |
30 |
30 |
40 |
|
Depth |
mm |
55 |
55 |
60 |
|
Bolster Thickness |
mm |
45 |
50 |
50 |
|
Max Angle of Inclination |
° |
35 |
35 |
35 |
|
Bolster Surface Height |
mm |
725 |
770 |
800 |
|
Overall Dimensions |
F× B |
mm |
900 |
900 |
1100 |
|
L× R |
mm |
650 |
670 |
850 |
|
Height |
mm |
1580 |
1750 |
1950 |
|
Distance Between Foundation Bolts |
F× B |
mm |
485 |
590 |
800 |
|
L× R |
mm |
380 |
400 |
470 |
|
Motor Power |
kw |
1.1 |
1.5 |
2.2 |
|
Weight (Approximate) |
kg |
480 |
580 |
1100 |
|
Power Supply |
|
380V 3Phase 50Hz |
