| Prod Model: |

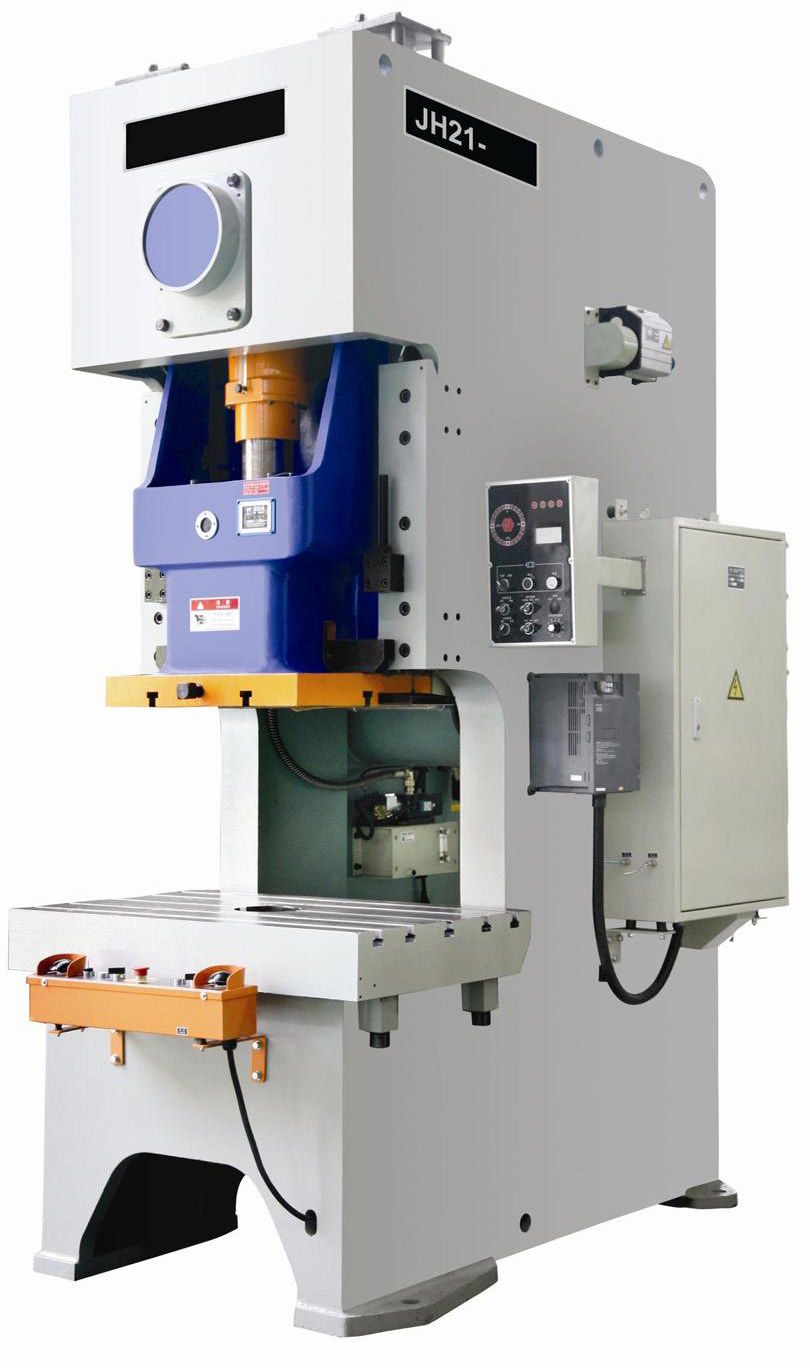

JH21-250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
High-Performance Power Press |
Product Description
Features:
* The body is welded with steel plate to gain good rigidity and stable precision. The crankshaft is placed vertically, so the structure is compact and the contour is beautiful. Using the combined pneumatic friction clutch and brake, so the engagement is smooth, the action is agile and the noise is low.
* Gear pair adopts the flooding system lubrication. The slide block is six-face rectangle with longer guide track whose face is bronze panel, meanwhile an import hydraulic overload protector can be installed in the slide block with imported air pump and ring seal. Its action is agile and reliable. There set lifting balance cylinder at the slide block with imported ring seal. The air pipeline is controlled by safely duplex value.
* The presses can be equipped with air cushion, automatic feed shaft, photo-electric protector, and various automatic equipments. The die set is adjusted by motor over JH21-110 press. The kind of press conforms to the safety standard of press.
| Specifications | Unit | JH21-250T |
| Nominal Capacity | KN | 2500 |
| Nominal Capacity Stroke | mm | 6 |
| Slide Stroke | mm | 250 |
| Stroke Per Minute | Fixed | S.P.M | 30 |
| Variable | 20~30 |
| Max. Shut Height | mm | 500 |
| Shut Height Adjustment | mm | 120 |
| Throat Depth | mm | 450 |
| Distance Between Uprights | mm | 980 |
| Bed Face Size | F×B | mm | 880 |
| L×R | 1500 |
| Bed Opening Dimension | mm | Φ200 |
| Slide Bottom Size | F×B | mm | 700 |
| L×R | 950 |
| Stem Hole Size | Dia. | mm | Φ70 |
| Depth | 130 |
| Bolster Thickness | mm | 190 |
| Bolster Surface Height | mm | 1000 |
| Overall Dimensions | F×B | mm | 2660 |
| L×R | 1640 |
| Height | 3865 |
| Distance between foundation bolts | F×B | mm | 2100 |
| L×R | 1460 |
| Motor Power | kw | 22 |
| Total Weight (Approximate) | kg | 23200 |
| Power Supply | | 380V 3Phase 50Hz |
