| Prod Model: |
C purlin roll forming machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Can Paint as Your Requirement |
| Control System: |
PLC Control |
| Cutting System: |
Hydraulic Shearing |
| Type: |
Building Machine |
Product Description

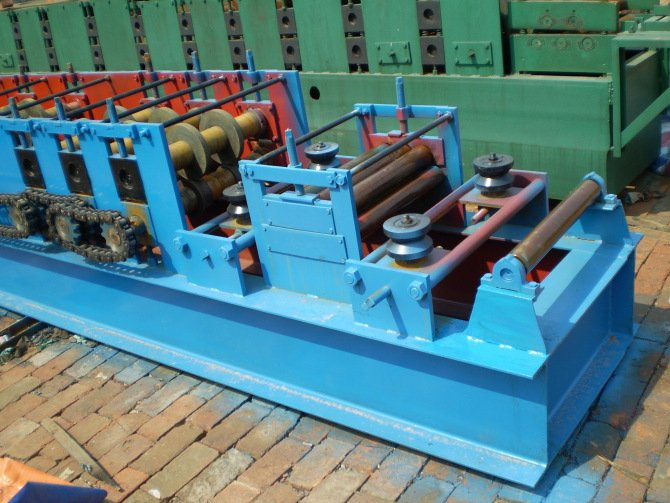

C steel roll forming machine
Roll forming machine Forming size 8000mm*2400mm*1200mm
Weight 5.5T
Host big frame 350 H Steel welding
Roll station 14 ranks
Forming axial material 45# Steel welding
Made board 20mm
Roller materials 45# Steel hard chromium plating processing
Drive By chain
Chain thickness
2 inches
Working speed 8-10m/min
Thickness Below 3mm
Suppress specifications Based on customer's demand
Main power 15kw
Hydraulic pump station 3kw
Axle diameter 85mm
Usage: shape purlin |
Model |
Section size |
|
h(mm) |
b(mm) |
c(mm) |
t(mm) |
|
|
C80 |
80 |
40-80 |
10-20 |
2.0-2.5 |
|
C100 |
100 |
40-80 |
10-20 |
2.0-3.0 |
|
C100 |
100 |
40-80 |
10-20 |
2.0-3.0 |
|
C120 |
120 |
40-80 |
10-20 |
2.0-3.0 |
|
C120 |
120 |
40-80 |
10-20 |
2.0-3.0 |
|
C140 |
140 |
40-80 |
10-20 |
2.0-3.0 |
|
C140 |
140 |
40-80 |
10-20 |
2.0-3.0 |
|
C160 |
160 |
40-80 |
10-20 |
2.0-3.0 |
|
C160 |
160 |
40-80 |
10-20 |
2.0-3.0 |
|
C180 |
180 |
40-80 |
10-20 |
2.0-3.0 |
|
C180 |
180 |
40-80 |
10-20 |
2.0-3.0 |
|
C200 |
200 |
40-80 |
10-20 |
2.0-3.0 |
|
C200 |
200 |
40-80 |
10-20 |
2.0-3.0 |
|
C220 |
220 |
40-80 |
10-20 |
2.0-3.0 |
|
C220 |
220 |
40-80 |
10-20 |
2.0-3.0 |
|
C240 |
240 |
40-80 |
10-20 |
2.0-3.0 |
|
C240 |
240 |
40-80 |
10-20 |
2.0-3.0 |
|
C260 |
260 |
40-80 |
10-20 |
2.0-3.0 |
|
C260 |
260 |
40-80 |
10-20 |
2.0-3.0 |
|
C280 |
280 |
40-80 |
10-20 |
2.0-3.0 |
|
C300 |
300 |
40-80 |
10-20 |
2.0-3.0 |
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
