| Prod Model: |
house cover and eaves machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as Your Requirement |
| Voltage: |
380V 50Hz 3phases |
| Control System: |
PLC Control |
| Cutting Sytem: |
Hydraulic Shearing |
| Type: |
Building Machine |
Product Description

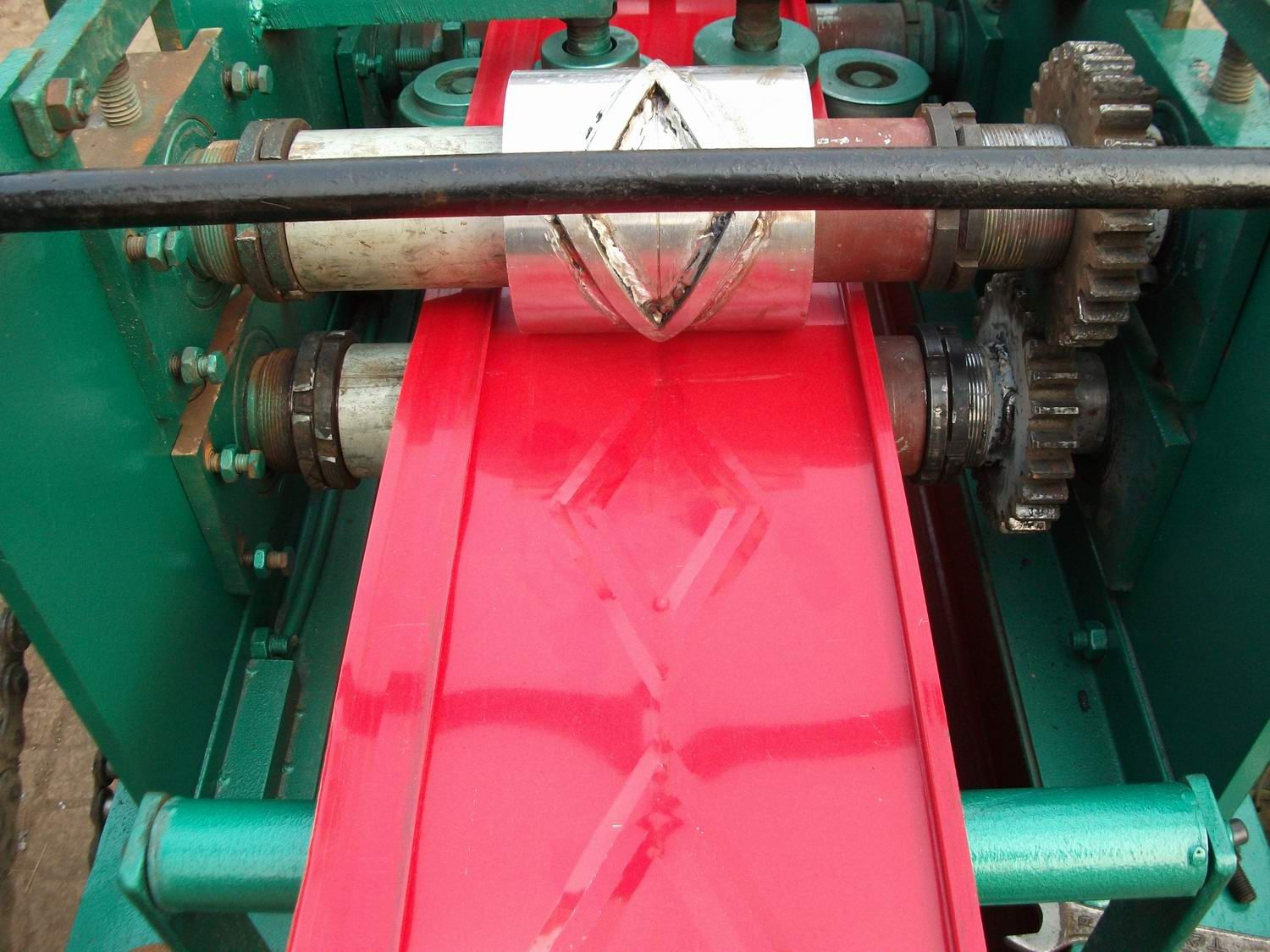

House cover and eaves machine made in China
Molding host Model House cover and eaves machine
Forming size 3500mm*700mm*800mm
Weight 2T
Host big frame structure Frame welded
Roll station 12 row
Axial material 45# steel
Out diameter of shaft 50mm
Roller materials 45# steel hard chromium plating
Drive By chain
Sprocket chain 6 points
Main power: 2.2KW
Working speed 8-10 m/min
Material thickness 0.3-0.8mm
|
Material of blade |
Cr12, heat treatment 60-62Degrees Celsius |
|
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40# |
Electrical system
|
Screen display |
5.7 inches TaiDa touch screen |
|
Main computer control cabinet |
It adopts industrial computer to control. The target piece’ s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision: within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand is EURA
The seller should provide Chinese and English language screen. |
