| Prod Model: |
c z 80-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rolling Machine |
| Power Source: |
Hydraulic Pressure |
| Feature: |
High Efficiency |
| Advantage: |
Use Widely |
| Forging Forming Method: |
Mold Forging |
| Control System: |
PLC Panasonic Inverter |
| Material Of Roller: |
Cr12 |
| Speed Of Forming: |
10-14.8m/Min |
Product Description

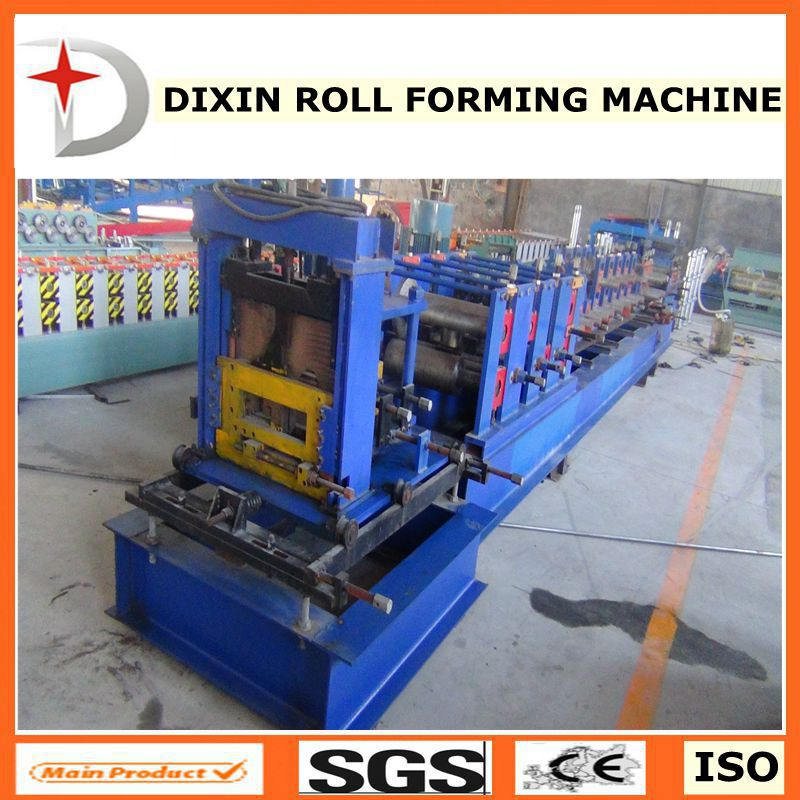

C/Z purlin interchangeable roll forming machine
1. Specification
1) BV identification
2) high-quality product
3) smooth operation
4) reasonable structure
5) steady performance
2. Main Parameter and specification of the china hot sale c z purline roll forming machinery
We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.
The weight of theMachine: 9.0T
The total demension of machine: (length)10m x (width)1.4m x (height)1.8m
1)Decoiler
Decoiler Type: Manual decoiler
Weight capacity of decoiler: 5.0T
2)Feeding and Leveling Device
It used for making the material flat before feeding into the roll forming machine
3)Hydraulic Punching & Cutting (punching and cutting are before roll forming)
Punching Type: Hydraulic Punching
Cutting type: Hydraulic cutting
Cutting material: Cr12
Hydraulic power: 5.5KW
Hydraulic Pressure: 16Mpa
4)Rolling Forming System
Main motor type: Phase asynchronous motor(manufacturer: Shanghai nanyang)
Motor power: 15KW
Speed of forming: 10-14.8m/min
Material of roller: GCr15
18 groups rollers
Material of main shaft: 40Cr(The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming)
Diameter of main shaft: ø 70mm
5)PLC Control System
Control the quantity &punching length& cutting length automatically
Voltage: 380V, 3 Phase 50Hz
Size of PLC Control Board: 700mm(L)x1000mm(H)x300mm(W)
PLC manufacturer: Japan Panasonic
Solenoid valve
Oil hydraulic cylinder
Bearing
Oil pipeline
Touch Screen
Encoder
6)Product support frame
The length of product support frame: 6m
3. Equipment components:
Man-made uncoiler, Roll forming machine, computer control system,
Hydraulic control system, cutting
4. The usage of the c z purline building material machinery
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building
Manufacturing, and have features such as nice appearance and durable.
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 18.5 kw |
| Pump Power | 15kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80-300mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 80mm |
| Backboard Thickness | 18mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500 × 1400 × 1350mm |
| Total Weight | 6T |
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
