Product Description

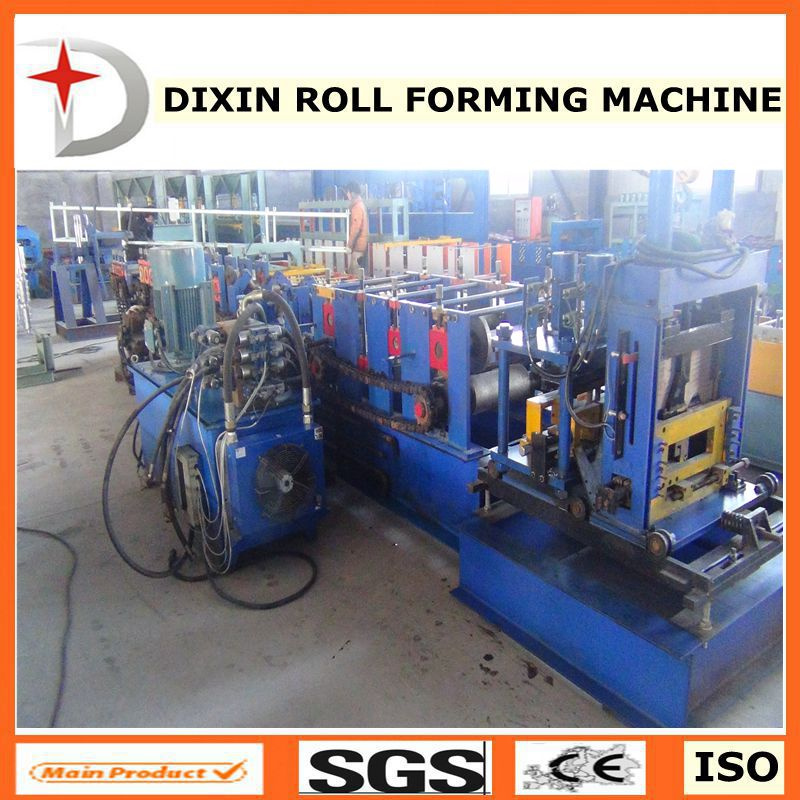

Cz prulin roll forming machine
1. Specification
1) BV identification
2) high-quality product
3) smooth operation
4) reasonable structure
5) steady performance
2. Main Parameter and specification of the china hot sale c z purline roll forming machinery
We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.
The weight of theMachine: 9.0T
The total demension of machine: (length)10m x (width)1.4m x (height)1.8m
1)Decoiler
Decoiler Type: Manual decoiler
Weight capacity of decoiler: 5.0T
2)Feeding and Leveling Device
It used for making the material flat before feeding into the roll forming machine
3)Hydraulic Punching & Cutting (punching and cutting are before roll forming)
Punching Type: Hydraulic Punching
Cutting type: Hydraulic cutting
Cutting material: Cr12
Hydraulic power: 5.5KW
Hydraulic Pressure: 16Mpa
4)Rolling Forming System
Main motor type: Phase asynchronous motor(manufacturer: Shanghai nanyang)
Motor power: 15KW
Speed of forming: 10-14.8m/min
Material of roller: GCr15
18 groups rollers
Material of main shaft: 40Cr(The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming)
Diameter of main shaft: ø 70mm
5)PLC Control System
Control the quantity &punching length& cutting length automatically
Voltage: 380V, 3 Phase 50Hz
Size of PLC Control Board: 700mm(L)x1000mm(H)x300mm(W)
PLC manufacturer: Japan Panasonic
Solenoid valve
Oil hydraulic cylinder
Bearing
Oil pipeline
Touch Screen
Encoder
6)Product support frame
The length of product support frame: 6m
3. Equipment components:
Man-made uncoiler, Roll forming machine, computer control system,
Hydraulic control system, cutting
4. The usage of the c z purline building material machinery
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building
Manufacturing, and have features such as nice appearance and durable
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 18.5 kw |
| Pump Power | 15kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80-300mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 80mm |
| Backboard Thickness | 18mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500 × 1400 × 1350mm |
| Total Weight | 6T |
