| Prod Model: |
Various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ceritifcate: |
ISO CE |
| Productivity: |
Three Production Lines Per Year |
| Installation: |
Offer Foundation Chart, Dispatch En |
| Certification: |
ISO9001: 2008 |
| Out Material Size: |
0.074-0.4mm |
| Guarantee: |
1 Year (Wearing Parts Excluded) |
| Quality: |
China Standard |
| Power: |
15-1000kw |
| Type: |
Beneficiation Machinery |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
Product Description
Usage: Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Working principle:

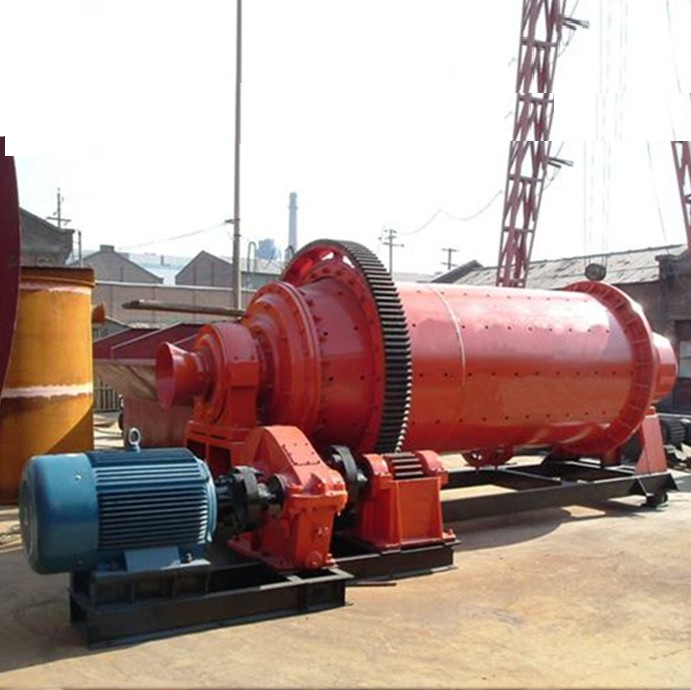

This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to RAM hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
Structure:
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
| Model | Rotary Speed
(r/min) | balls weight(t) | The feeding size
(mm) | The finalsize
(mm) | Capacity
(t/h) | Main Motor
(kw) | Weight
(t) |
| MQG900× 1800 | 36-38 | 1.5 | ≤ 20 | 0.075-0.89 | 0.65-2 | 18.9 | 4.3 |
| MQG900× 3000 | 36 | 2.7 | ≤ 20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.3 |
| MQG1200× 2400 | 36 | 1.5 | ≤ 20 | 0.074-0.6 | 1.2-3 | 22 | 8.5 |
| MQG1200× 2800 | 36 | 3 | ≤ 25 | 0.074-0.6 | 1.5-4.8 | 30 | 11.4 |
| MQG1200× 3000 | 36 | 3.5 | ≤ 25 | 0.074-0.4 | 1.6-5 | 37 | 12.1 |
| MQG1200× 4500 | 32.4 | 5 | ≤ 25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.1 |
| MQG1500× 3000 | 29.7 | 7.5 | ≤ 25 | 0.074-0.4 | 2-5 | 75 | 14.8 |
| MQG1500× 4500 | 27 | 11 | ≤ 25 | 0.074-0.4 | 3-6 | 90-110 | 19.9 |
| MQG1500× 5700 | 28 | 12 | ≤ 25 | 0.074-0.4 | 3.5-6 | 130 | 23.4 |
| MQG1830× 2400 | 25.4 | 10 | ≤ 25 | 0.074-0.4 | 4-8 | 130 | 23.7 |
| MQG1830× 3000 | 25.4 | 11 | ≤ 25 | 0.074-0.4 | 4-10 | 130 | 26.6 |
| MQG1830× 4500 | 25.4 | 15 | ≤ 25 | 0.074-0.4 | 4.5-12 | 155 | 30.4 |
| MQG1830× 6400 | 24.1 | 21 | ≤ 25 | 0.074-0.4 | 6.5-15 | 210 | 32.3 |
| MQG1830× 7000 | 24.1 | 23 | ≤ 25 | 0.074-0.4 | 7.5-17 | 245 | 34.2 |
| MQG2100× 3000 | 23.7 | 15 | ≤ 25 | 0.074-0.4 | 6.5-36 | 155 | 32.3 |
| MQG2100× 4500 | 23.7 | 24 | ≤ 25 | 0.074-0.4 | 8-43 | 245 | 40 |
| MQG2100× 7000 | 23.7 | 26 | ≤ 25 | 0.074-0.4 | 8-48 | 280 | 47.5 |
| MQG2200× 4500 | 21.5 | 27 | ≤ 25 | 0.074-0.4 | 9-45 | 280 | 46.5 |
| MQG2200× 6500 | 21.7 | 35 | ≤ 25 | 0.074-0.4 | 14-26 | 380 | 50.2 |
| MQG2200× 7000 | 21.7 | 35 | ≤ 25 | 0.074-0.4 | 15-28 | 380 | 51.3 |
| MQG2200× 7500 | 21.7 | 35 | ≤ 25 | 0.074-0.4 | 15-30 | 380 | 53.2 |
| MQG2400× 3000 | 21 | 23 | ≤ 25 | 0.074-0.4 | 7-50 | 245 | 51.3 |
| MQG2400× 4500 | 21 | 30 | ≤ 25 | 0.074-0.4 | 8.5-60 | 320 | 64.7 |
| MQG2700× 4000 | 20.7 | 40 | ≤ 25 | 0.074-0.4 | 12-80 | 400 | 89 |
| MQG2700× 4500 | 20.7 | 48 | ≤ 25 | 0.074-0.4 | 12-90 | 430 | 97 |
| MQG3200× 4500 | 18 | 65 | ≤ 25 | 0.074-0.4 | ------ | 800 | 130.5 |
