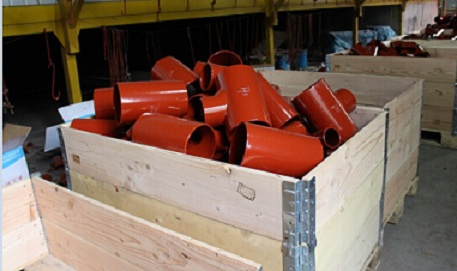

Centrifugal Casting Iron Pipe, Pipe Fittings

Prod Model:	all size
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Dn40-300
Type:	Cast Iron Pipes
Usage:	Water Supply
Joint Type:	Flexible Joint
Section Shape:	Round
Shape:	Round
Customized:	Customized
Gasket Material:	NR
Certification:	ISO9001

Product Description

MATERIAL
Grey cast iron

USE RANGE
Building install, dirty water and rain water exhausting,
exchanging dirty air with pure air, facilities of hygene room and sewerage pipe.

ADVANTAGE
1) Centrifugal casting, compact structure, free from pinhole porosity and slag,
smooth surface and eren wall thickness,anticorrosion, defend the noise.
2) Flexible joint, coupling facilitates installation and repair work, the exterior shape is bexutiful.
3) Lighter weight compared with sand-mould casting pipes and it's laying length increases 20-30% consequently.

SPECIFICATION


ASTM A888 HUBLESS CAST IRON PIPE
ASACODENO.	SIZE	B		J		T		L±13	APPROXWT EA.(KG)	PALLETQUAN.(PC)
		Nor.	Tol.	Nor.	Tol.	Nor.	Min.
0156	1.5	38.10	±2.29	48.26	±1.52	4.06	3.3	3048	13	60
0158	2	49.80	±2.29	59.69	±2.29	4.06	3.3	3048	16	64
0160	3	75.20	±2.29	85.09	±2.29	4.06	3.3	3048	23	48
0162	4	100.08	±2.29	111.25	+2.29 -1.27	4.83	3.81	3048	34	30
0164	5	125.48	±2.29	134.62	+2.29 -1.27	4.83	3.81	3048	42	21
0168	6	150.88	±2.29	160.02	+2.29 -1.27	4.83	3.81	3048	49	18
0170	8	201.68	±3.3	212.85	+3.3 -2.29	5.84	4.32	3048	80	10
0171	10	254.00	±3.3	268.22	±2.29	7.11	5.59	3048	127	8
0172	12	303.28	±3.3	317.5	±3.3	7.11	5.59	3048	140	6
0173	15	383.79	±3.3	402.08	±3.3	9.14	7.62	3048	240	3
