| Prod Model: |
en877 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn40-300 |
| Usage: |
Water Supply |
| Type: |
Cast Iron Pipes |
| Joint Type: |
Flexible Joint |
| Shape: |
Round |
| Section Shape: |
Round |
| Gasket Material: |
NR |
| Customized: |
Customized |
| Certification: |
ISO9001 |
Product Description

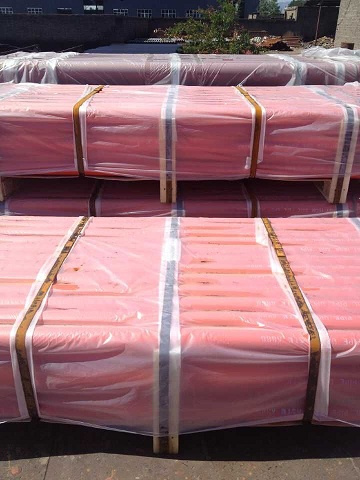

EN877 cast iron pipe and
fittings
l material: grey cast iron
l Size:DN40-DN300
l paint:
two-part epoxy resin powder coating fittings, with an average dry
thickness of 100-400 microns.
two-part epoxy resin painting, with an average dry thickness
of 40-80 microns
l standard:conform to DIN/EN877/ISO6594
l tensile strength: above 350MPA
l ring crush: above 220MPA
l package: wooden tray
features:
smooth surface, high density, no white, High strength, light weight, reasonable design in structure, beautiful externality used on high buildings and environmental protecting, strength corrosion-resistant coating for fittings
| (DN) | Outside diameter | Wall thickness | mm |
| Nominal size | tolerance | Nominal size | tolerance |
| 40 | 48 | +2
-1 | 3.0 | 2.5 | 3000+-20 |
| 50 | 58 | 3.5 | 3.0 |
| 70 | 78 | 3.5 | 3.0 |
| 75 | 83 | 3.5 | 3.0 |
| 100 | 110 | 3.5 | 3.0 |
| 125 | 135 | +2
-2 | 4.0 | 3.5 |
| 150 | 160 | 4.0 | 3.5 |
| 200 | 210 | +2.5
-2.5 | 5.0 | 4.0 |
| 250 | 274 | 5.0 | 4.5 |
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
