| Prod Model: |
all size |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn40-300 |
| Type: |
Cast Iron Pipes |
| Usage: |
Water Supply |
| Joint Type: |
Flexible Joint |
| Section Shape: |
Round |
| Shape: |
Round |
| Customized: |
Customized |
| Gasket Material: |
NR |
| Certification: |
ISO9001 |
Product Description
EN877 cast iron pipe and
fittings
l material: grey cast iron
l Size:DN40-DN300
l paint:
two-part epoxy resin powder coating fittings, with an average dry
thickness of 100-400 microns.
two-part epoxy resin painting, with an average dry thickness
of 40-80 microns
l standard:conform to DIN/EN877/ISO6594
l tensile strength: above 350MPA
l ring crush: above 220MPA

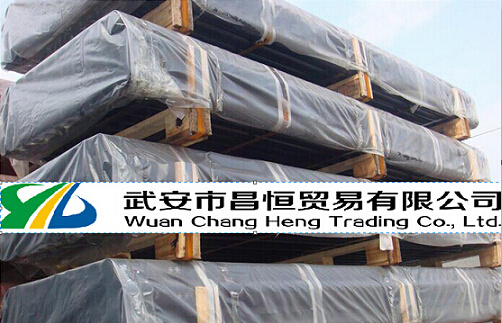

l package: wooden tray
features:
smooth surface, high density, no white, High strength, light weight, reasonable design in structure, beautiful externality used on high buildings and environmental protecting, strength corrosion-resistant coating for fittings
SML cast iron fittings for pipe size as list.
DN |
External diameter DE(mm) |
Wall thickness(mm) |
Unit weight |
Length |
Nominal value |
Tolerance |
Nominal value |
Minimum value |
kg/pc |
(mm) |
40 |
48 |
+2
-1 |
3.0 |
2.5 |
12.70 |
3000+/-20 |
50 |
58 |
3.5 |
3.0 |
13.00 |
70 |
78 |
3.5 |
3.0 |
17.70 |
75/80 |
83 |
3.5 |
3.0 |
18.90 |
100 |
110 |
3.5 |
3.0 |
25.20 |
125 |
135 |
+2
-2 |
4.0 |
3.5 |
35.40 |
150 |
160 |
4.0 |
3.5 |
42.20 |
200 |
210 |
+2.5
-2.5 |
5.0 |
4.0 |
69.30 |
250 |
274 |
5.5 |
4.5 |
99.80 |
300 |
326 |
6.0 |
5.0 |
129.70 |
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
