| Prod Model: |
Centrifugal pump KS series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Power: |
1.5kw-15kw |
| Voltage: |
210V-460V |
| Air Engine Type: |
Diesel Engine |
| Theory: |
Jet-flow |
| Transmission: |
Belt Transmission |
| Type: |
Centrifugal Pump |
Product Description
KS Series

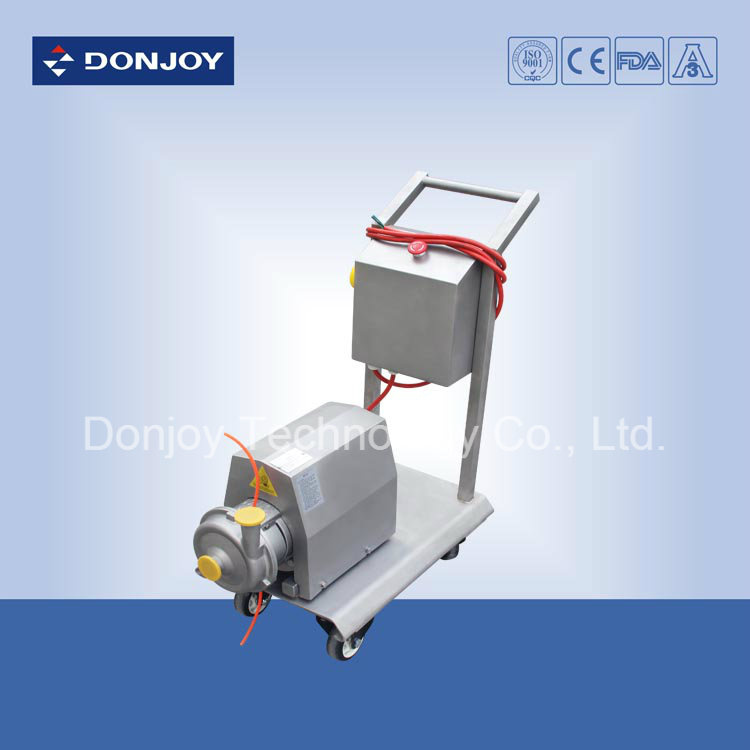

The centrifugal pump is made of stainless steel and with a shrouded motor.
Sanitary and cost-efficient design makes it perfect for the daries ,beverages, food-processing,
pharmaceutical and fine chemicals industries.
Operating Principles
Housed inside the casing,impeller rotates in conjunction with the pump shaft.With this arrangement,
the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.
This pump can't reversible by simple reversal of the direction of rotation.
The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
Design and Features
Casing manufactured with cold-formed plate.Open impeller and close impeller manufactured
with stainless steel investment casting;
Adjustable stainless steel legs,pump designed according to 3A Sanitary standards.IEC or B34
motors,IP55, F-class insulation,50HZ,60HZ
Materials
| Parts in contact with pumped media | AISI-316/304 |
| Gaskets(standard) | EPDM(FDA) |
| Mechanical seal(standard) | SIC/EPDM |
| Inside surface finishing | Ra less than or equal 0.8 micron |
| Outside surface finishing | Sandblast or mirror polish |
Technical specifications
| MAX.FLOW | 150stere/h |
| MAX.HEAD | 70h(M) |
| Max.working temperature | 120 degree C/248 degree F
(30min CIP/SIP) |
| MAX.REV | 3600Min-1 |
| Certificate | 3A-02-10/NO.1579,FDA.177.2600 |
Options
| Mechanical seal in | C/SIC, TC/TC |
| Gaskets in | FPM(VITON) and NBR |
| Connections | Clamp,thread,flange,DIN,SMS,RJT,IDF |
| Motor | 2900,1450,3600Min/1, 50HZ, 60HZ |
