| Prod Model: |
BS Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flow Rate: |
1.5-40t |
| Discharge Head: |
14-36m |
| Motor Power: |
1.5kw-7.5kw |
| Inlet Size: |
1.5"-2.5" |
| Outlet Tsize: |
1.5-2" |
| Mechnical Seal Size: |
22mm |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
Middle Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |

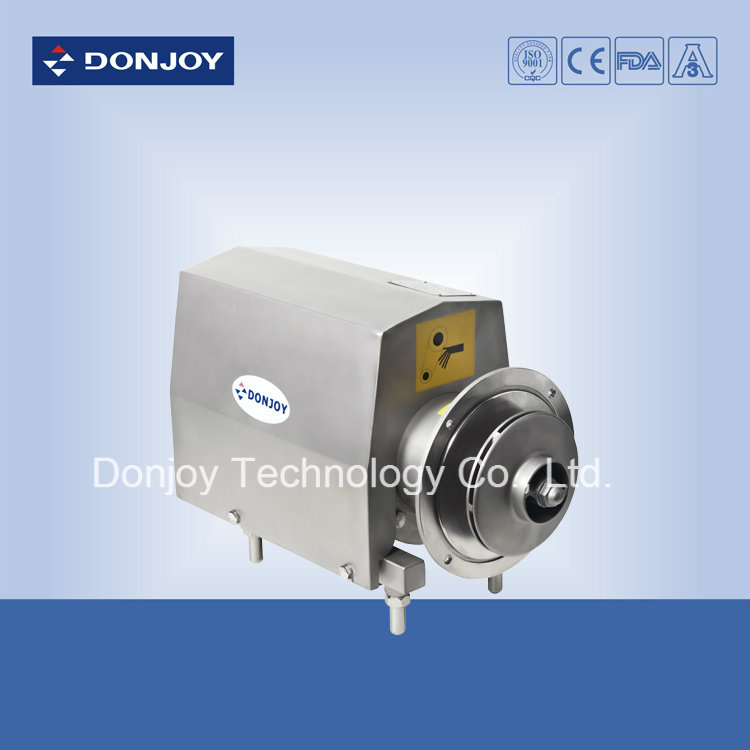

Product Description
Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.BS Series centrifugal pump is designed with close impeller,widely used in dairies,beverage,food-processing industry.
They correct direction of rotatiion of this pump is clockwise,ti si not allowed to turn recerse rotation.
The direction of rotation can be viewed from motor.
Design and features:
1.Casing manufactured with cold-formed plate.Open impeller and close impeller manufacturd with stainless steel investment casting.
2.Mechnical seal according to DIN 2946L 1K.
3.Adjustable stainless steel legs.Pump designed according to 3A sanitary standards;IEC B35 motors,IP55,F-class insulation,50HZ.
Specification:| Product Name: | Sanitary stainless steel close impeller centrifugal pump |
| Valve Body Material: | SS304/SS316L/1.4301/1.4404 |
| Seal Material: | EPDM (Standard, FDA approval) FPM(Viton) and NBR |
| Max. Flow: | 40 m3/h |
| Max. Speed: | 3600 min-1 |
| Max. Head: | 36H(m) |
| Max. Working Pressure: | 7 bar/99 PSI |
Max. Working Temperature: | 120 °C/248 °F(CIP/SIP) |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Sealing type: | single mechanical seal(standard) |
| Motor power: | 1.1kw, 1.5kw, 2.2kw |
| Voltage: | 110V, 220V, 380V |
| Motor: | ABB/domestic |
| Motor Frequency: | ABB,50HZ, 60HZ |
| Surface treatment: | Mirror or satin polish |
| Application structure: | BS |
| Availably connection: | Tri-Clamp, Thread, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Low discharge : | Diaphragm valve/ball valve/butterfly valve |
| Certificate: | 3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Plywood case or customerized. Or as per the request of customers. |
| Delivery details: | Usually within 20 days after receiving T/T down payment. |
