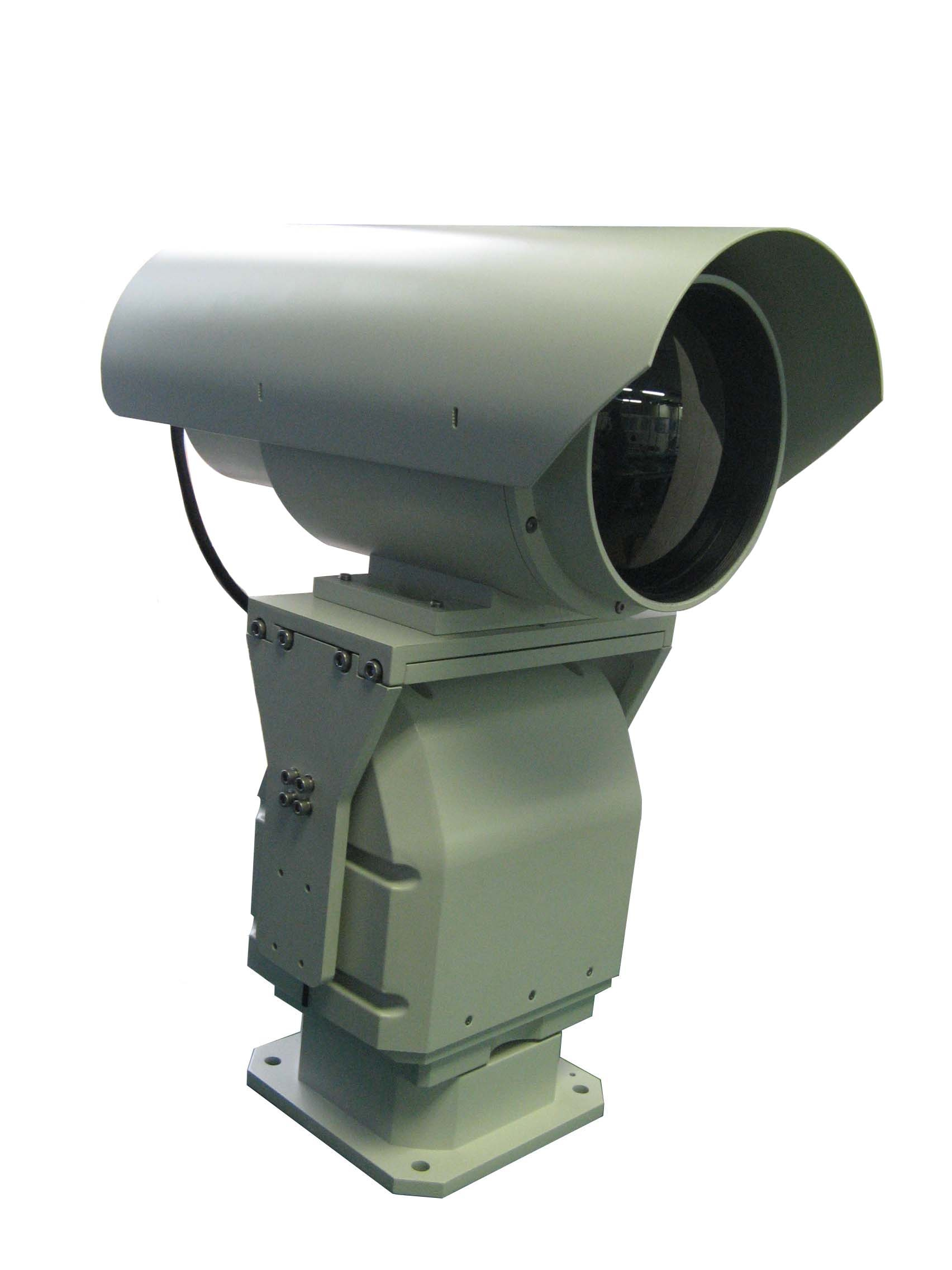

| Prod Model: |
SHR-TIR155R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
265mmx180mmx315mm |
| Technology: |
Infrared |
| Style: |
Pan/Tilt |
| Type: |
CCTV Camera |
| Kind: |
Autofocus Lens |
| Certification: |
ISO9001: 2000 |
| Feature: |
Auto BLC |
| Effective Distance: |
≧30m |
| Remote Control: |
With Remote Control |
Product Description
Product features
High resolution uncooled microbolometer infrared focal plane arrays,vox
25µm or 17 µm pixel,image quality fine,observe small target more clearly,further detection distance
High sensitivity, NETD can reach 50mk and frame at 25Hz
Word originate 30~150mm continuous zooming,can search in a wide range as well as identify target far,not lost target
Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color
Low power consumption, quick start-up, stable performance, image clearly with high uniformity
RS 485 interface control, analog video signal output
Simple operation,easy to use and maintain
Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime
Technical Indicators
| Monitoring distance | Object | People(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
| Detect distance | 3600m | 9900m |
| Recognize distance | 900m | 2470m |
| Identification distance | 450m | 1200m |
| Thermal lens | Focal length | 30~150mm,5x optical zoom |
| FOV | 3.1°×2.4°~15.2°×12.2° |
| F | 1.2 |
| Lens control | Electronic zoom/focus(auto focus is optional) |
| Detector | Detector type | Uncooled FPA detector(vox) |
| Pixel | 324×256,pixel 25μm |
| Spectrum | 8~14μm |
| NETD | ≤50mK |
| Frame | 25Hz |
| NUC | Auto/Manual/Background correction |
| Image process | DDE,pseudo color |
| Video output | PAL |
| Pan-tilt | Rotating angle | Pan:0°~ 360°continuous;Tilt:+30°~ -45° |
| Rotating speed | Pan:0.1°~9°/S;Tilt:0.1~4°/S |
| Presets | 255 |
| Agreement | Pelco-D,Pelco-P Optional |
| Baud rate | 2400/4800/9600/19200 bps Optional |
| Interface | RS485 |
| Power supply | AC24V±10%,50Hz |
| Power consumption | ≤30W |
| Working temperature | -25ºC~+55ºC |
| Storage temperature | -40ºC~+65ºC |
| Load capacity | 20kg |
| Weight | 10Kg |
| Size | 265mm×180mm×315mm(L×W×H) |
| Interface | Power supply interface | DC12V |
| Other interface | RS485,BNC Video output |
| Environmental indicators | Working temperature | -25ºC~+55ºC |
| Storage temperature | -40ºC~+65ºC |
| International protection | IP66 |
| Anti-vibration | GB/T 4857.10-2005 |
| Anti-impact | GB/T 15412-94 Free drop test method |
| Anti-thunder | 2000V |
| Power | Power supply | DC12V(attached AC220V/DC12V power adapter) |
| Power consumption | ≤8W |
| Physical features | Weight | ≤5Kg |
| Size | 400mm×202mm×200mm(L×W×H,contain sunshield cover) |
| Installation | Outdoor base install |
