Size:
440mmx213mmx600mm
Technology:
Pan / Tilt / Zoom
Style:
Pan/Tilt
Type:
CCTV Camera
Kind:
Manual Focus Lens
Certification:
ISO9001: 2000
Feature:
Auto BLC
Effective Distance:
≧30m
Remote Control:
With Remote Control
Product Description

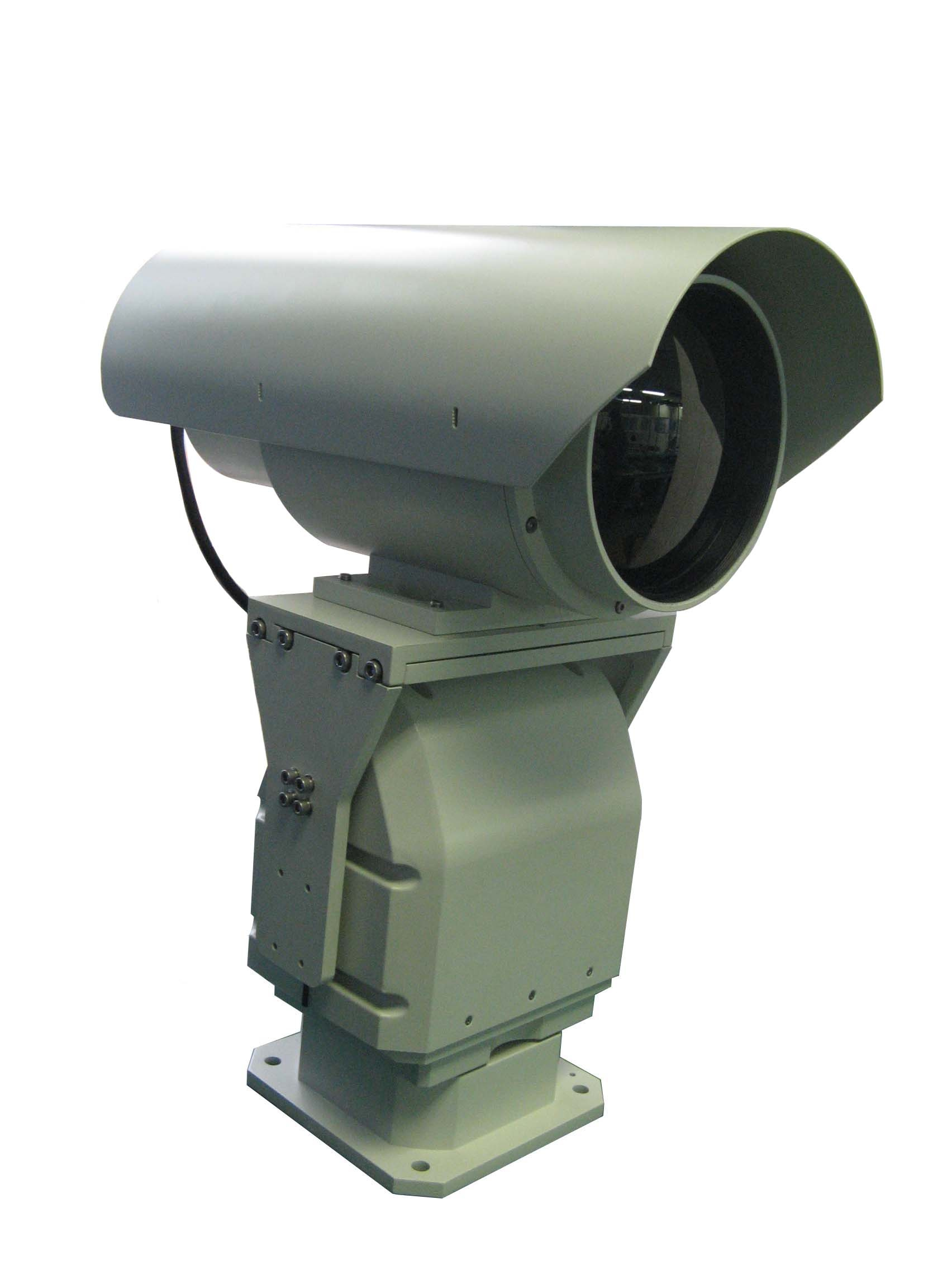

Product features High resolution uncooled microbolometer infrared focal plane arrays,vox 25µm or 17 µm pixel,image quality fine,observe small target more clearly,further detection distance High sensitivity, NETD can reach50mk and frame at 25Hz Word originate 36~180mm continuous zooming,can search in a wide range as well as identify target far,don't lost target Image noise reduction processing,add DDE function; output hot white/ hotblack/pseudo color Low power consumption, quick start-up, stable performance, image clearly with high uniformity RS 485 interface control, analog video signal output Simple operation,easy to use and maintain Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime Technical Indicators
Monitoring distance
Object
People(1.8m×0.5m)
Vehicle(2.3m×2.3m)
Detect distance
4320m
11880m
Recognize distance
1080m
2970m
Identification distance
540m
1440m
Thermal lens
Focal length
36~180mm,5x optical zoom
FOV
2.5°×2.0°~12.7°×10.2°
F
1.2
Lens control
Electronic zoom/focus(auto focus is optional)
Detector
Detector type
Uncooled FPA detector(vox)
Pixel
324×256,pixel 25µm
Spectrum
8~14μm
NETD
≤50mK
Frame
25Hz
NUC
Auto/Manual/Background correction
Image process
DDE,pseudo color
Video output
PAL
Pan-tilt
Rotating angle
Pan:0°~ 360°continuous;Tilt:+30°~ -45°
Rotating speed
Pan:0.1°~9°/S;Tilt:0.1~4°/S
Presettings
255
Agreement
Pelco-D,Pelco-P Optional
Baud rate
2400/4800/9600/19200 bps Optional
Interface
RS485
Power supply
AC24V±10%,50Hz
Powerconsumption
≤30W
Working temperature
-25ºC~+55ºC
Storage temperature
-40ºC~+65ºC
Load capacity
20kg
Weight
10Kg
Size
265mm×180mm×315mm(L×W×H)
Interface
Power supply interface
DC12V
Other interface
RS485,BNC video output
Environmental indicators
Working temperature
-25ºC~+55ºC
Storage temperature
-40ºC~+65ºC
International protection
IP66
Anti-vibration
GB/T 4857.10-2005
Anti-impact
GB/T 15412-94 Free drop test method
Anti-thunder
2000V
Power
Power supply
DC12V(attached AC220V/DC12V power adapter)
Power consumption
≤8W
Physical features
Weight
≤7Kg
Size
440mm×213mm×217mm(L×W×H,contain sunshield cover)
Installation
Outdoor base install
