Prod Model: |
SHR-TIR185R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Detect Distance: |
4320m for People, 11880m for Car |
Detector: |
324*256(640*512 Optional) |
Spectrum: |
8~14 |
Netd: |
50mk |
Frame: |
25Hz |
Thermal Lens: |
36~180mm,5X Optical Zoom |
Image Process: |
Dde,Pseudo Color,Hot Black,Hot White |
Technology: |
Infrared |
Style: |
Pan/Tilt |
Type: |
Video Camera |
Certification: |
SGS |
Feature: |
Waterproof / Weatherproof |
Sensor: |
Vox |
Product Description

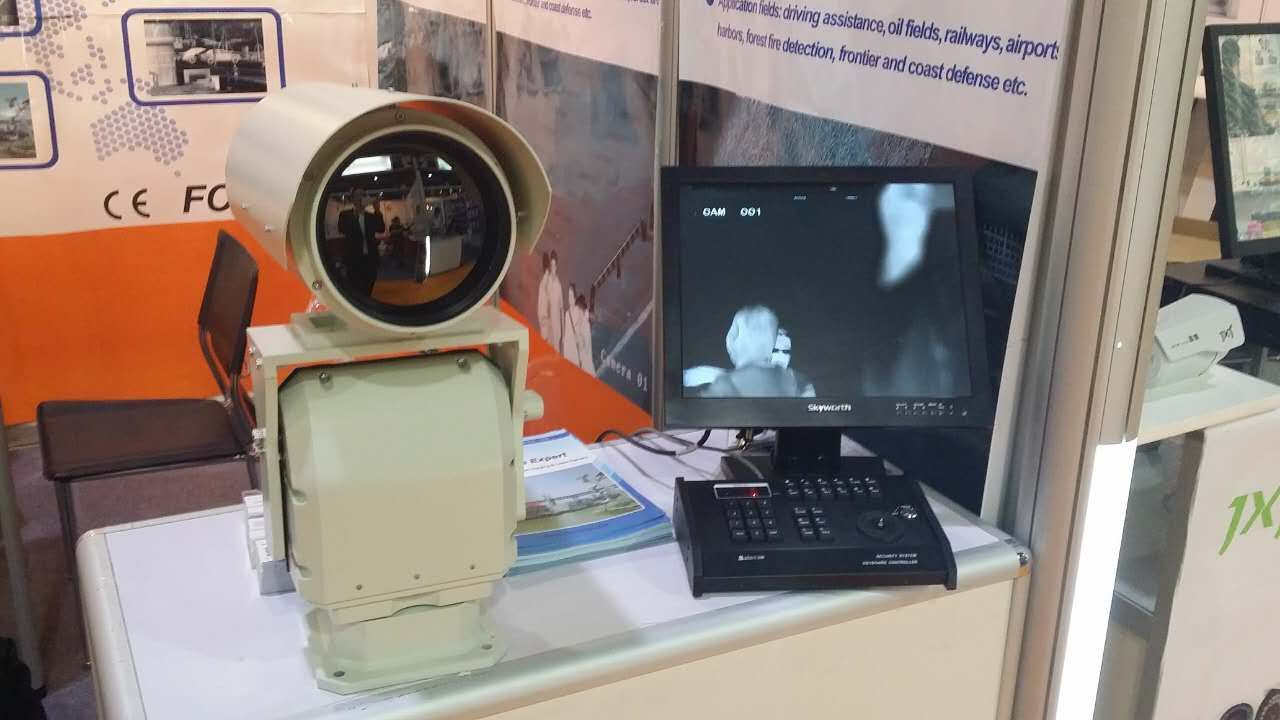

TIR185R Long Range Thermal Camera with Best Image EffectProduct Features:
1.High resolution uncooled microbolometer infrared focal plane arrays,vox
2.25µm or 17 µm pixel,image quality fine,observe small target more clearly,further detection distance
3.High sensitivity, NETD can reach 50mk and frame at 25Hz
4.Word originate 36~180mm continuous zooming,can search in a wide range as well as identify target far,don't lost target
5. Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo colo
.6Low power consumption, quick start-up, stable performance, image clearly with high uniformity
7.RS 485 interface control, analog video signal output
8.Simple operation,easy to use and maintain
9.Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime
Specification:
Monitoring distance | Object | People(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
Detect distance | 4320m | 11880m |
Recognize distance | 1080m | 2970m |
Identification distance | 540m | 1440m |
Thermal lens | Focal length | 36~180mm,5x optical zoom |
FOV | 2.5°×2.0°~12.7°×10.2° |
F | 1.2 |
Lens control | Electronic zoom/focus(auto focus is optional) |
Detector | Detector type | Uncooled FPA detector(vox) |
Pixel | 324×256,pixel 25µm |
Spectrum | 8~14μm |
NETD | ≤50mK |
Frame | 25Hz |
NUC | Auto/Manual/Background correction |
Image process | DDE,pseudo color |
Video output | PAL |
Interface | Power supply interface | DC12V |
Other interface | RS485,BNC video output |
Environmental indicators | Working temperature | -25ºC~+55ºC |
Storage temperature | -40ºC~+65ºC |
International protection | IP66 |
Anti-vibration | GB/T 4857.10-2005 |
Anti-impact | GB/T 15412-94 Free drop test method |
Anti-thunder | 2000V |
Power | Power supply | DC12V(attached AC220V/DC12V power adapter) |
Power consumption | ≤8W |
Physical features | Weight | ≤7Kg |
Size | 440mm×213mm×217mm(L×W×H,contain sunshield cover) |
Installation | Outdoor base install |
Other configuration together with Thermal camera:
Visible camera,Laser illuminator etc.
