| Prod Model: |
QJJ175-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Chocolate |
Product Description

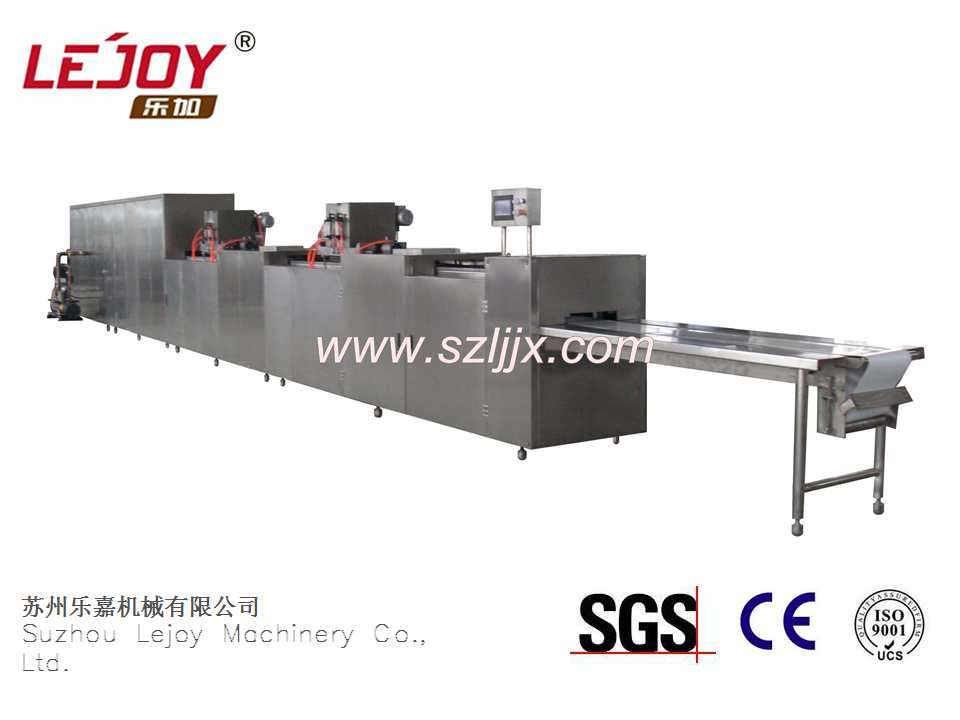

For quantitative pouring chocolate special equipment, it can produce single color, two-tone color, contains filling the chocolate and the broken kernel contains filling the chocolate. The machine set of a baking mold, the second cast, the second vibration, secondary cooling, transmission, automatic ejection in one multi-casting machine.
This machine has the quantitative precision (each piston rod are used import seal, each are inlaid stainless steel piston set outside the rod), photoelectric control casting, electrical heating mode, automatic climate control, hot water circulation. It is suitable for the factory which has many varieties and large production capacity.
Main parameter:
Production ability: 10-18 moulds/minute
Mould dimension: With lug: 280× 200× 300mm
Without lug: 330× 200× 30mm
General power: 23KW (include refrigerate machine)
Weight: 4100KG
Outside dimension: 1600(include 200cm length transportation table)*100*230cm
|
Type |
Production capacity( moulds/minute) |
Power(KW) |
Mould number |
Mould demensions(mm) |
Weight
(kg) |
Outside dimension(mm) |
|
QJJ150 |
6-15 |
7.47 |
200 |
275*175*30 |
500 |
4000*520*1500 |
|
QJJ175 (single casting head) |
6--15 |
19 |
280 |
275*175*30 |
3500 |
16000*1000*1800 |
|
QJJ175( double casting heads) |
6-15 |
23 |
330 |
330*200*30 |
4100 |
16000*1000*1800 |
|
QJJ330-510 |
6-15 |
28 |
380 |
510*200*30 |
5300 |
18000*1200*1900 |
|
QJJ275 (3-steps depositing) |
6-12 |
38 |
410 |
275*175*30 |
6500 |
15420*5270*2100 |
|
QJJ1000 |
6-12 |
49 |
580 |
---------- |
8200 |
26800*3500*2550 |
