| Prod Model: |
QJJ275-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Chocolate |
Product Description

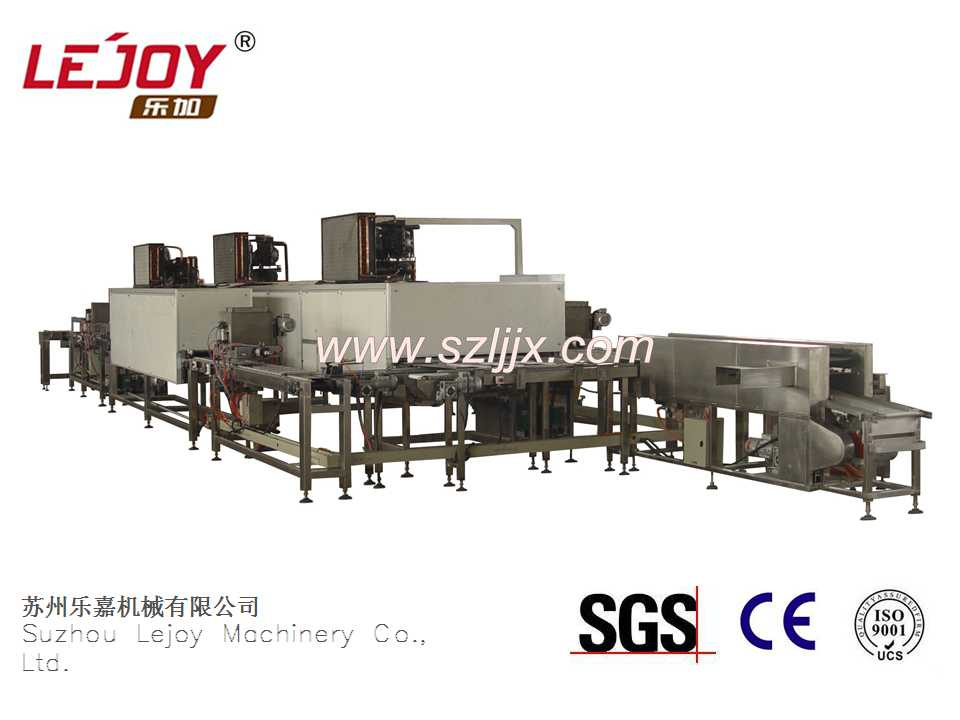

The machine is a special equipment for chocolate casting form. Besids pure chocolate, chocolate with filling, multi-colours and multi-tastes can be produced. The machine set of the second baking mold, pouring three times, three vibration, three cooling, transmission, automatic ejection in one multi-casting machine. With PLC human interface operation.
This machine has the quantitative precision (each piston rod are used import seal, each are inlaid stainless steel piston set outside the rod), photoelectric control casting, electrical heating mode, automatic climate control, hot water circulation. It is suitable for the factory which has many varieties and large production capacity.
Main parameter:
Production ability: 6-12 moulds/minute
Mould dimension: 275× 175× 30MM
General power: 38KW (include refrigerate machine)
Weight: 6500KG
Outside dimension: 1542*527*210cm
|
Type |
Production capacity( moulds/minute) |
Power(KW) |
Mould number |
Mould demensions(mm) |
Weight
(kg) |
Outside dimension(mm) |
|
QJJ150 |
6-15 |
7.47 |
200 |
275*175*30 |
500 |
4000*520*1500 |
|
QJJ175 (single casting head) |
6--15 |
19 |
280 |
275*175*30 |
3500 |
16000*1000*1800 |
|
QJJ175( double casting heads) |
6-15 |
23 |
330 |
330*200*30 |
4100 |
16000*1000*1800 |
|
QJJ330-510 |
6-15 |
28 |
380 |
510*200*30 |
5300 |
18000*1200*1900 |
|
QJJ275 (3-steps depositing) |
6-12 |
38 |
410 |
275*175*30 |
6500 |
15420*5270*2100 |
|
QJJ1000 |
6-12 |
49 |
580 |
---------- |
8200 |
26800*3500*2550 |
