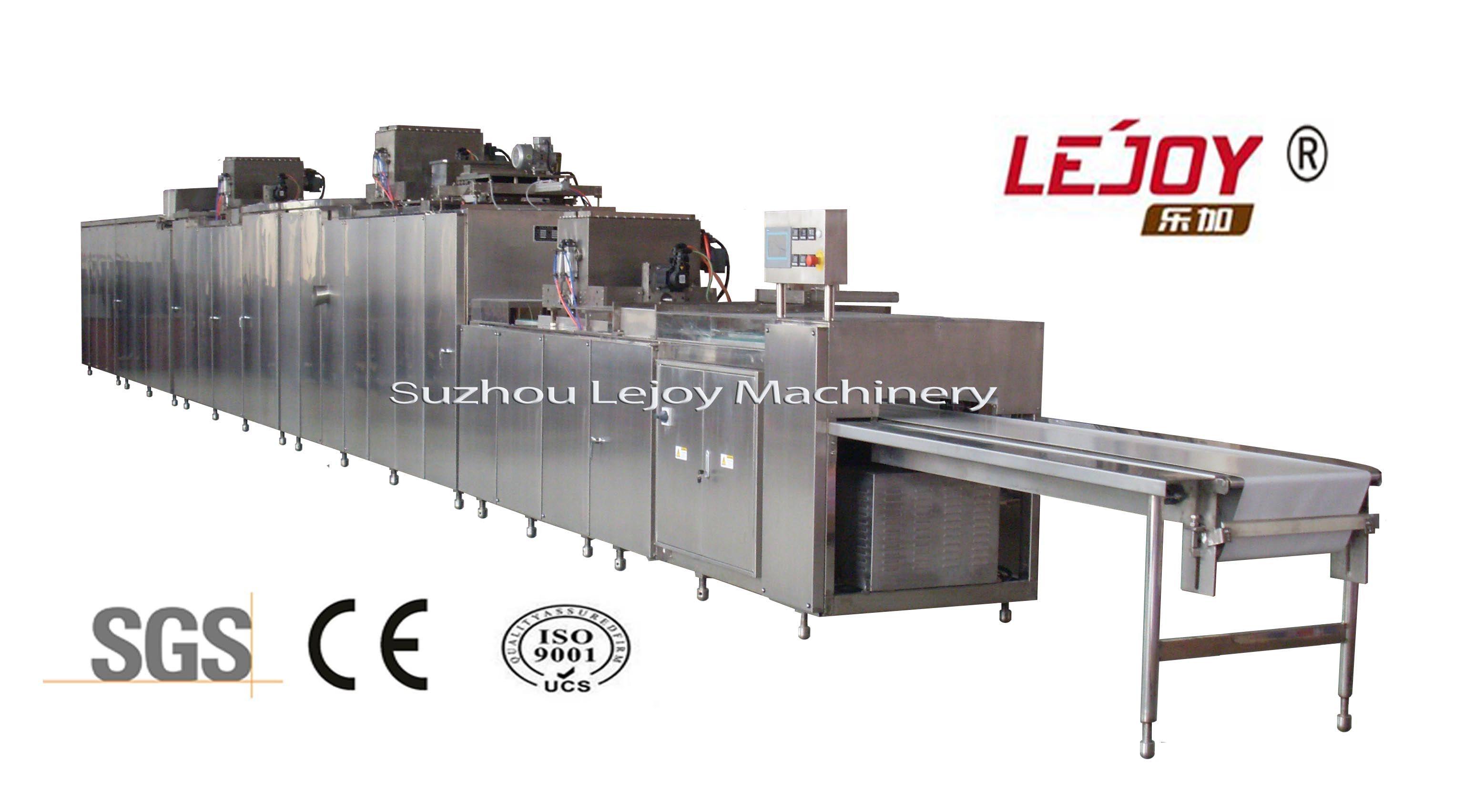

Chocolate Machine Chocolate Moulding Line (3-steps depositing)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
QJJ330-510 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Casting Head: |
3+2 |
Product Description
The machine is a special equipment for chocolate casting form. Besids pure chocolate, chocolate with filling, multi-colours and multi-tastes can be produced. The machine set of the second baking mold, pouring three times, three vibration, three cooling, transmission, automatic ejection in one multi-casting machine.

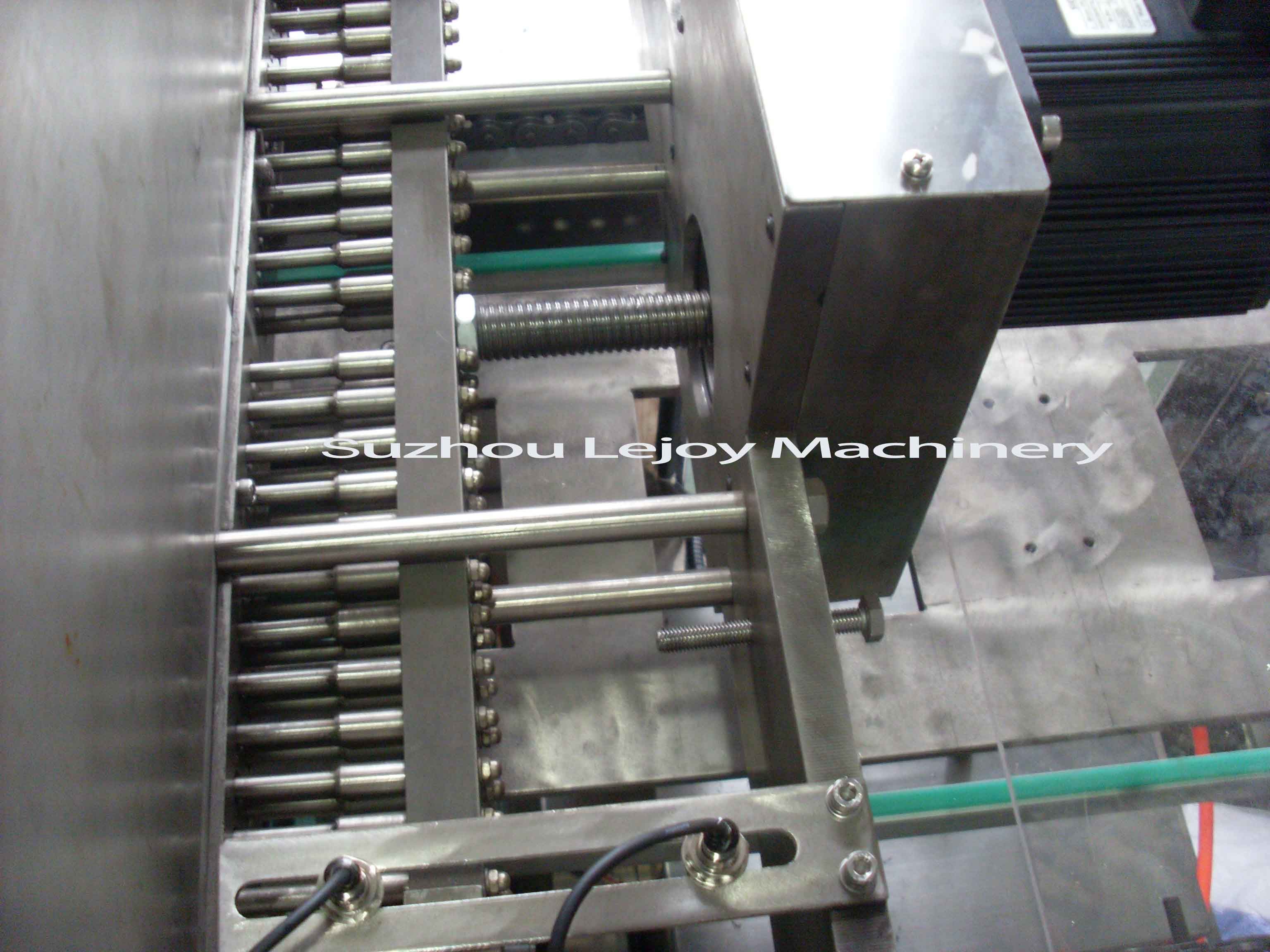

This machine has the quantitative precision (each piston rod are used import seal, each are inlaid stainless steel piston set outside the rod), photoelectric control casting, electrical heating mode, automatic climate control, hot water circulation. It is suitable for the factory which has many varieties and large production capacity.
Main parameter:
Production ability: 6-15 moulds/minute
Mould dimension: 510× 200× 300mm
General power: 28KW (include refrigerate machine)
Weight: 5300KG
Outside dimension: 1800(include 200cm length transportation table)*120*210cmPics:
|
Type |
Production capacity( moulds/minute) |
Power(KW) |
Mould number |
Mould demensions(mm) |
Weight
(kg) |
Outside dimension(mm) |
|
QJJ150 |
6-15 |
7.47 |
200 |
275*175*30 |
500 |
4000*520*1500 |
|
QJJ175 (single casting head) |
6--15 |
19 |
280 |
275*175*30 |
3500 |
16000*1000*1800 |
|
QJJ175( double casting heads) |
6-15 |
23 |
330 |
330*200*30 |
4100 |
16000*1000*1800 |
|
QJJ330-510 |
6-15 |
28 |
380 |
510*200*30 |
5300 |
18000*1200*1900 |
|
QJJ275 (3-steps depositing) |
6-12 |
38 |
410 |
275*175*30 |
6500 |
15420*5270*2100 |
|
QJJ1000 |
6-12 |
49 |
580 |
---------- |
8200 |
26800*3500*2550 |
Chocolate machine manufacturer, Suzhou Lejoy Machinery Co., Ltd. is located in the ancient city, Xushuguan, which is conveniently connected to Shanghai-Nanjing Railway, Shanghai-Nanjing Express, Beijing-Shanghai High-speed Railway, 312 National Highway and the Grand Canal and is only hundred kilometers away from Shanghai.
Our company specializes in production of complete sets of chocolate production machines, chocolate coating machines and other chocolate forming related machines. We have won the trust and high opinion from clients with high-quality products and have exported to over 40 countries and regions, such as UK, France, Belgium, Mexico, Brazil, Egypt, New Zealand, Australia, Canada, Malaysia, India, Pakistan, Russia, Uzbekistan, etc...
Suzhou Lejoy Machinery Co., Ltd. Takes honesty, innovation and high-quality as aim since the establishment of the company. We continuously improve our products for better service to our clients. We sincerely welcome customers from all over the world to our company!
