| Prod Model: |
MBY800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grinding Mill: |
Coal Mill Pulverizer |
| Motor Type: |
AC Motor |
| Type: |
Ball Mill |
| Condition: |
New |
| Motor Power: |
1000 |
Product Description
Machinery Factory of Gongyi City:http://www.gymineralprocessing.com
fixed-line telephone:86-0371-64324031 85603988
FAX:86-0371-64324051
Add:Gongyi City,HenanProvince, Kangdianzhen goverment one kilometer south
contacts:Sir ma;Tel:18538037601
We will offer warm-hearted service to you

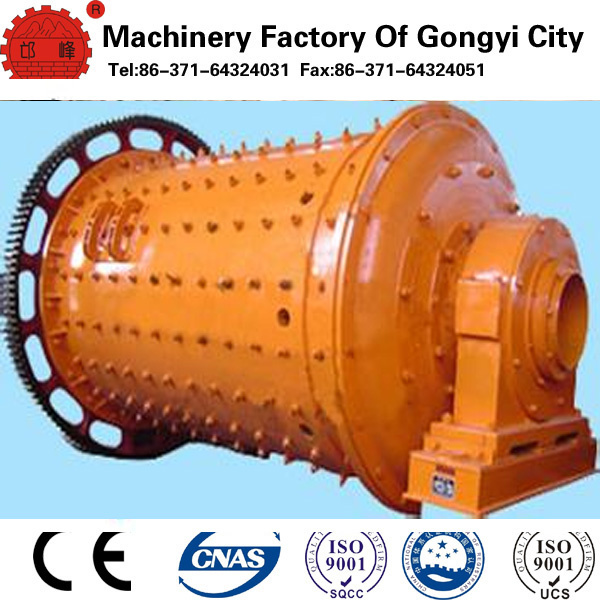

Coal Mill Pulverizer with Competitive Price
Aplication of Coal Ball Mill
Coal ball mill is used to grind coal into fine powder,and is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Structure of coal ball mill
Coal ball mill is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Working Principle of Coal Ball Mill
Coal ball mill is horizontal rotating devices transmitted by the outer gear. The ball mill has two warehouses. The materials are transported by feeder to the grinding chamber through the quill shaft spirally, then enter the first warehouse. In the warehouse, there is a ladder scale board or ripple scale board. Steel balls of different specifications are installed in the scale board. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and then fall to grind and strike the material. After being grinded coarsely in the first warehouse, the material then enters into the second warehouse for regrinding. The above action repeats constantly till the size of materials reaches the required fineness. In the end, the powder is discharges by output material board and the end products are completed.
Main Parameter of Coal Ball Mill
No. |
Specification(m) |
t/h
output(t/h) |
mill rotate speed(r/min) |
mill entry granularity(mm) |
grinding body load(t) |
m3
effective volume(m3
) |
drive
mode
|
main electric machinery |
main decelerator |
equipment weight(kg) |
1 |
Φ1.7×2.5 |
3-5 |
24.5 |
≤25 |
7.5 |
5.1 |
edge |
JR116-6 95KW 380V |
ZD40-4.5 |
19436 |
2 |
Φ2.2×3 |
5-6 |
22 |
≤25 |
13 |
10.4 |
edge |
JR136-8 180KW 380V |
ZD50-4.87 |
31480 |
3 |
Φ2.4×4.75 |
12 |
20.4 |
≤25 |
22 |
19.25 |
edge |
YR400-8 280KW 6KV |
ZD60-4.5 |
49300 |
4 |
Φ2.4×4.5+2 |
12 |
20.4 |
≤25 |
22.6 |
18.25 |
edge |
YRKK500-8 280KW 10KV |
JD450-4.5 |
70323 |
5 |
Φ3×6.5+2.5 |
20 |
18.4 |
≤25 |
46.5 |
43.3 |
edge |
YRKK560-6 710KW 10KV |
JDX630-6.3 |
118300 |
6 |
Φ3.4×7.5+1.5 |
30-38 |
17.5 |
≤25 |
70 |
64.1 |
edge |
YR800-8/1180 800KW 6KV |
JDX710-6.3 |
160000 |
7 |
Φ2.9×4.1 |
16 |
18.8 |
≤25 |
35 |
27.1 |
edge |
JRQ1510-8 475KW 6KV |
JDX560-5 |
73997 |
8 |
Φ2.8×5.75+2.25 |
18-20 |
18.7 |
≤25 |
38 |
32.9 |
edge |
YRKK560-8 500KW 10KV |
MBY630-4.5 |
116313 |
9 |
Φ3.8×7+2.5 |
38 |
16.4 |
≤25 |
80 |
75 |
edge |
YKK6304-8 1250KW 6KV |
MBY710-5.0 |
175374 |
Gongyi City Machinery Factory (original Kangdian machinery factory, Gong County Machinery Factory) has large and medium-sized equipment 365 sets, 384 employees, consists of six department: Tachnical department, production department, sales department, domestic trade department, international trade department, service department. There are 240 high-intermediate grade technical personnel. It covers an area of 38, 600 square meters, building area is 18, 000 square meters, fixed assets is 28 million yuan. Gongyi City Machinery Factory is locaded in Kangdian town. One kilometer to south of Kang million eatate Scenic and Kangzhuang road. It is in the east of the provincial capital of Zhengzhou city, there is Hulaoguan Three Kingdoms Battlefield Site; West of Luoyang which is ancient capital of nine dynasties, there is longmen Grottoes which is one of China four famous cave; South of the songshan mountain, there are shaolin Temple and songyang Scademy; North of the Yellow River, there is Sihe yanliu scenic district; Lianhuo Expressway, the Longhai Railway zhengzhou-Xi′ An high-speed rail pass through from east to west, Yellow River bridge line pass through south to nouth. Location is good and transportation is convenient.
Since the factory is established in 1958, it first past the ISO9001 2000 international certification, and obtained import and export license eligibility. Now the leading product are beneficiation series, sandstone series, drying series, milling series eqipment. The products sell well in more than 20 provinces, municipalities and autonomous regions, famous in China, and exporten to many countries southeast Asia, Africa. Quality is enterprise′ S life, we will achieved recognition and satisfaction of the customer through excellent products and quality service. AN oeder is positive, one hopes is a responsibility. No matter it is in the before-sales, during sales or after -sales, we always offer the most attentive service to make you comfortable, let you succeed, also make you satisfied. Cooperating with Gongyi City Machinery Factory will make you no regrets!
Make friends all over the world, invite world content. Gongyi City Machinery Factory sincerely welcome friends from all walks of life to visit and guide, putting forward valuable advice, dicussing cooperation intention, joining hands to creating a better tomorrow.
