| Prod Model: |
4.2*13m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grinding Mill: |
Grinding Mill for Cement Plant |
| Motor Type: |
AC Motor |
| Type: |
Ball Mill |
| Condition: |
New |
Product Description
Gongyi Machinery Factory:http://www.gymineralprocessing.com
fixed-line telephone:86-0371-64324031 85603988
FAX:86-0371-64324051
Add:Gongyi City,HenanProvince, Kangdianzhen goverment one kilometer south
contacts:Sir ma;Tel:18538037601
We will offer warm-hearted service to you

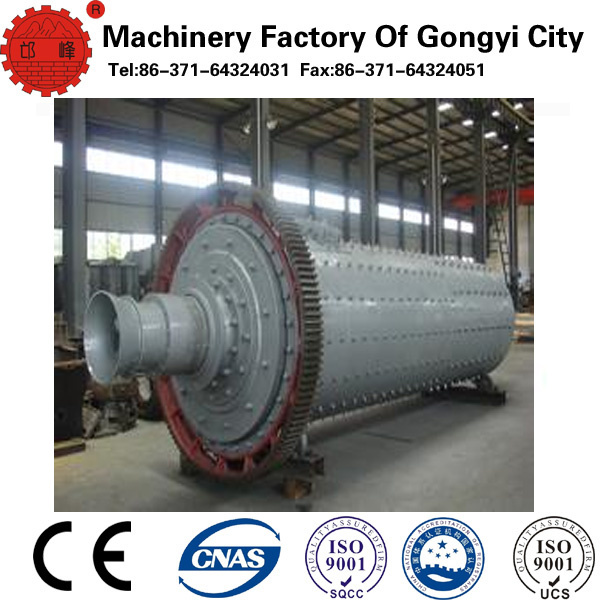

Introduction to Grid Ball Mill
Grid ball mill is a key equipment to grind all kinds of ores and other materials, such as coal, lime, cement, silica sand, iron ore, gold ore, glass and ceramics, which is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
Dry Ball Mill
Grid ball mill consists of feed & discharge parts, rotary shell, transmission part and other major components. Hollow shaft is with steel parts, lining is removable. Rotary gear adopts casting hobbing, and the tube body is with resisting liner.
Grid ball mill is an efficient machine for fine powder grinding and key equipment for grinding after the crushing process. There are two ways of ball mill grinding: the dry way and the wet way.
Features of Grid Ball Mill
1) Size reduction of various materials
2) Feed sizes of 25mm to product sizes of 0-400mesh
3) Wet or dry grinding
4) Continuous grinding process
5) Mineral processing
6) Environmental grinding
Grinding Balls for Ball Mill Machine
Working Principle of Ball Mill
Ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Parameters of Ball Mill
Model | Rotational speed | Ball load | Feeding size | Discharge size | Capacity | Motor power | Weight |
| | (r/min) | (t) | (mm) | (mm) | (t/h) | (kw) | (t) |
| 900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
| 900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
| 1200×2400 | 36 | 3 | ≤25 | 075-0.6 | 1.5-4.8 | 30 | 12 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| 1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3500 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 3.3-8.8 | 75 | 16.5 |
| 1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 90 | 21 |
| 1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| 1830×3600 | 25.4 | 13 | ≤25 | 0.075-0.8 | 4-8 | 130 | 30 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
| 1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| 2100×3600 | 23.7 | 18 | ≤25 | 0.075-0.8 | 4.5-33 | 180 | 37 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| 3200×3600 | 20.2 | 52 | ≤25 | 0.074-0.4 | 12-75 | 400 | 86 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | 25-130 | 800 | 137 |
