| Prod Model: |
10000 T |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

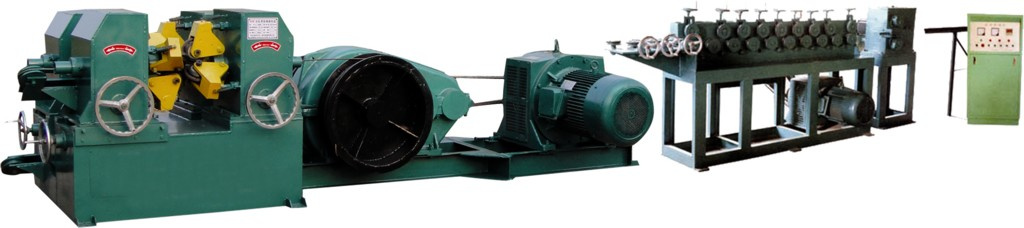

1 0 0 0 0 T Cold-Rolled Ribbed Steel Bar Wire Line
Technical parameters:
The maximum wire diameter is 12 millimeters. The rolling specification is 5-11millimeters. The installed capacity is 60 kilowatt. The rolling speed is 0-1.6 meters/minute. The install length is 22 meters.
Product characteristics:
It is the first independent research and development for integrated structure of China, the structure is compact, the area is small, the installs location only 30%, normally. Cyclic winding distance shortened attenuation 40% and the production increased 40% than the same power equipment. The process is reasonable for using two rolling-mill will not broke wire, the product quality is stable.
The speed reducer using international reducer, it has large torque, small noise, so firm durable.
The two-side reel uses hard alloy or anti-friction coating.
Using the most advanced frequency or electromagnetic techniques, it can save 30-40% electricity, the power consumption per ton of 8-10 degrees.
The line speed UPS to 90-120 meters, improve production efficiency more than 40%, it can be better product the power transmission and electrical equipment not be damaged, can extend the life of the machine greatly.
Independent research and development within the vibration aging technology, elimination of pre-stressed technology fills the gaps in the field of international and declared the patent. Using the technology to solve the problem which puzzled users due to the intensity of cold-rolled ribbed steel bars end products are too high and insufficient elongation. The process easy to operate, power consumption is only equivalent to 40w light bulb. It is the most advanced technology to eliminate the stress. (Note: The device does not contain this disposition)
The rolling mill uses 45 # pure steel casting, never cracking. (Note: Other manufacturers adopt to cast iron or ordinary steel, it is easy to crack and easy to deform) Rolling mill turbine structure set as a whole, casting using 45 # pure steel, there is no component, pull big, wearable, and constantly teeth, durable. (Note: Other manufacturers iron casting)
The bracket uses the steel adjustable bracket.
The straightening machine uses several rounds control technical, it has a small scratch to the steel bars, and the straightening efficient is well.
The cut off adopts self-development frequency conversion and very fast scissors technology to control. It is easy to operate. The failure rate is low, and has less cut off error.
Technical processes:
Wire rod examination----set wire off----from beginning to end welding----eliminates the phosphors----dried noodles lubrication----1# rolling mill reduce the diameter----2# rolling mill reduce the diameter and ribbed (some standers models cold-rolled ribbed belt steel bars do not need 2 # rolling mill)----straightening----decides the rule and cut off----examination and warehousing.
