Product Description

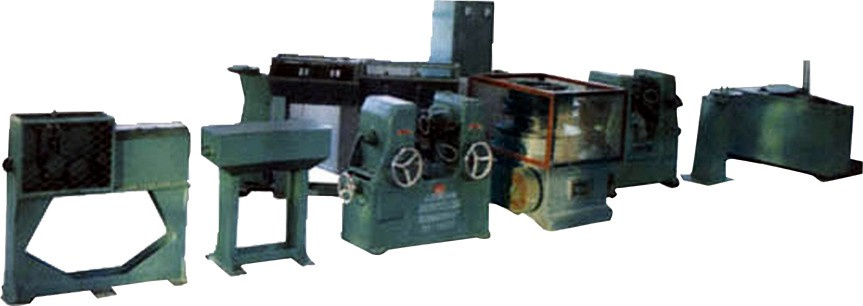

15000 T Cold-Rolled Ribbed Steel Bar Machine
Technical parameters:
Maximum wire diameter is 12 millimeters
Installed capacity: 75 kw
Rolling specification is 5-11mm
Velocity modulation way: Frequency conversion or files cuts the velocity modulation
Rolling speed: 90-120m/ minute
Install length: 20 meters
Tidying up wire machine (cylinder escapement): The plate weight one ton
Equipment weight: 8 tons
The LZ-15000T cold-rolled ribbed steel bar unit adopts to the international most advanced frequency conversion or self-development servo technology plus full-frequency control technology can reduce electricity consumption 30-40%, 8-10 degrees per ton of the most low-power degrees. (depend on steel model to be). The line speed can up to 90-120 meters to increase productivity more than 40%, be better production of transmission systems and electrical equipment is damaged, and it can greatly extend the life of the machine.
Independent research and development within the vibration aging technology, elimination of pre-stressed technology fills the gaps in the field of international and declared the patent. Using the technology to solve the problem which puzzled users due to the intensity of cold-rolled ribbed steel bars end products are too high and insufficient elongation. The process easy to operate, power consumption is only equivalent to 40W light bulb. It is the most advanced technology to eliminate the stress. (Note: The device does not contain this disposition)
(1)This unit adopt to the special-purpose speed reducer of wire drawing machine, the torque is large, the noise is small, the precision gears are high, the transmission efficiency is as high as 95%. It can saving electricity more than 40% than the international common reducer.
(2)The reel uses the removable big reel, the material uses the Japanese manganese essence cast to, and it is firm durable. The diameter of reel over 800 meters, effectively reduce the bending resistance of steel, reducing the damage to reinforced, improve the quality of the finished steel, improve the production efficiency.
Rolling mill
(1)The rolling mill uses 45 # pure steel casting, never cracking(other manufacturers adopt to cast iron or ordinary steel easy to crack and easy to deform) Rolling mill turbine structure set as a whole, using 45 # stainless steel casting, there is no component, pull big, wearable, and constantly teeth, durable. (Note: Other manufacturers iron casting)
(2)The bracket uses the steel adjustable bracket.
Technical processes:
Wire rod examination ----set wire off ---- head to end Welding ----phosphorus----dry powder lubricant----1 #-reducing rolling mill----2 #-reducing rolling mill ribs (some standard models of cold-rolled ribbed steel bars do not need to 2 # mill) ---- receiving wire ---- examination warehousing
Hebei Boyuan Wiredrawing Machinery Co., Ltd. is enterprise that management machinery and profession equipment. The registration authorized by the national related department. Main businesses are steel bar and pre-stressed machinery, steel bar straightening-cutting machine, cold rolling machine, cold-rolled ribbed steel bar equipment etc. The company is situated in hebei province xianxian county chenquan economic and development zone of China. We have established the long-term and friendship cooperation in line with many enterprises in the principle of customer first faith above. The commercial management takes along all staff cordially welcome friend from all walks of life. The commercial management takes along all staff cordially welcome friends from all walks of life to consultation, visit and discusses the service.
Our company is the biggest suppliers in the north of China. We are self-development and product industrial processing machine.
