| Prod Model: |
SB860 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Can Paint as Your Requirement |
| Control System: |
PLC Control |
| Mail Power: |
3kw |
| Warranty: |
12 Monthes |
| Type: |
Building Machine |
Product Description

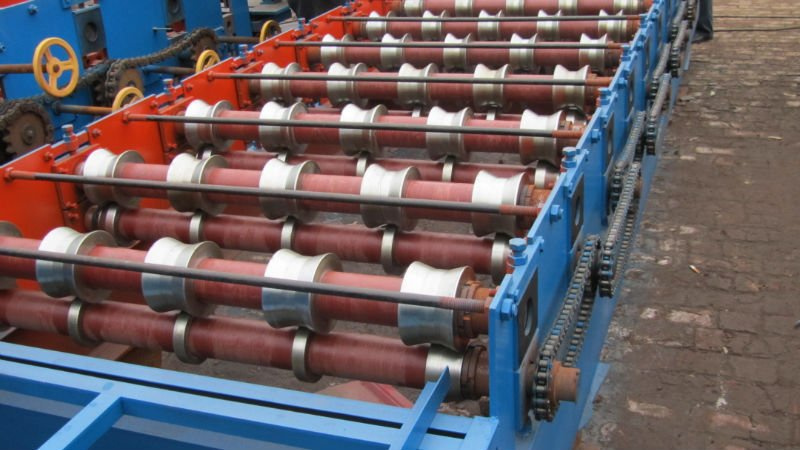

Color steel forming machine for trapezoid tile
Hydraulic shearing
Material of bladeCr12, heat treatment 60-62Degrees Celsius
Shearing systemIt is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40#
Electrical system
Screen display5.7 inches TaiDa touch screen
Main computer control cabinetIt adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: Automatic and manual one. The system is easy to operate and use.
Processing precision: Within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand is EURA
The seller should provide Chinese and English language screen.
|
No. |
main parameter of roll forming machine |
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
13 rows |
|
4 |
Dimensions |
6.0*1.1*1.2m |
|
5 |
Power |
3+3kw |
|
6 |
Thickness of the plate |
0.3-0.8mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ 70mm |
|
9 |
Weight |
About 3.0T |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Gr12 |
