Continuous Ductile Cast Iron Bar

Name: Continuous Ductile Cast Iron Bar
Brand: china-castingforging.com
SKU: 705989832
Availability: InStock
Rating: 4.8 (134 reviews)

Price:	US $ 950-1100/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Ton
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Handan Shi Hengong Metallurgical Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	QT500-7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Round Bar Diameter:	20-550mm
Square Size:	30X30-400X400mm
Rectangle Size:	30X40-30X320mm
Semicircle Size:	R30-R180
Tensile Strength:	500MPa
Handness:	150-220hb
Elongation:	>7%
Si:	2.2-3.2
Mn:	0.3-0.6
P:	≤0.1
Casting Form Material:	Metal
Casting Metal:	Cast Iron
Casting Form Usage Count:	Permanent
Casting Method:	Horizontal Continuous Casting
Surface Treatment:	Nothing
Surface Roughness:	Original Iron
Coating:	Nothing
Certification:	CCS

Product Description

Handan Hengong Metallurgical Machinery Co., Ltd. is a Chinese factory specializing in the manufacture of continuous cast iron bars, the subsidiary company of hebei dazzling continuous casting Co., Ltd, was founded in 2012. More than 15 years of experience in the manufacturing, machining and aftersales service of all these ductile iron, gray iron, alloy cast iron.

Materials Advantage:
Compared with other special steel,Hengong Bars has a lot of superior Characters as below:
1. With particularly pure material,without defects such as slag inclusion,sand inclusion and air holes
2. High comprehesive mechanic,especially with the notable raise for the character of tyhe toughnedd and the fatigue resistance .
3. Homogeneous structure,excellent pressure resistance and compactness.
4. The material with high precision,less maching allowance,high smooth finish surface for the maching.
5. Hollow section with all the above advantages,however with the higher density uniformity,as long as the pressure resistance and compachness
3. Homogeneous structure,excellent pressure resistance and compactness.
4. The material with high precision,less maching allowance,high smooth finish surface for the maching.
5. Hollow section with all the above advantages,however with the higher density uniformity,as long as the pressure resistance and compachness.
Key Specifications/Special Features

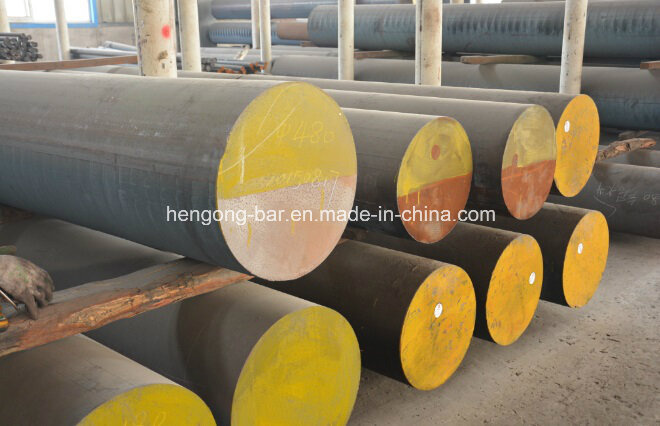

QT500-7, horizontal continuous ductile cast iron bar
Shape: round
Size range:Φ18mm-500mm
Superiority:good quality, higher strength and abrasive resistance

Range of application:
Hydraulic industry: guide sleeve, piston, plunger pump cylinder, hydraulic raft, distributor, hydraulic lock
Transmission industry: feed roller, stator, pulley
Air compressor industry: screw blank, screw rotor, compressor roll sets
Mould industry: glass mould
Other industry: gear pump gear, machine tool guideway, screw pump rotor, pump body gasket, injection molding machine,textile machine.

Material Specification

Chemical Composition	Si	2.2-3.2
	Mn	0.3-0.6
	P	≤0.1
	S	≤0.02
	C	3.0-3.9
	Mg	0.02-0.06
Mechanical Property	Tensile strength Mpa	30≤D≤150 470-500 150≤D≤450 420-470
	Hardness HB	150-220
	Elongation %	30≤D≤120 ≥7 125≤D≤450 ≥5
Format dimensions	Round	Φ20mm-Φ550mm

Product Details
Primary Competitive Advantages:   Distributorships Offered
                                                         Experienced Staff
                                                         Form A
                                                         Guarantee/warranty
                                                         Competitive Price
                                                         Product Features
                                                         Product Performance
                                                         Prompt Delivery
                                                         Quality Approvals
                                                         Reputation
                                                         Service
                                                         Small Orders Accepte

Φ Φ Φ Operation since 2012

Handan shi hengong metallurgical machinery Co., Ltd is the subsidiary company of hebei dazzling continuous casting Co., Ltd, founded in 2012. Hengong loated in handan city, hebei province which is the main location of cast iron production in China. Adhering to the management philosophy of honesty, pragmatic, serving and innocations from dazzling, hengong has introduced and carried out a wide range of innovation and technological improvements and has succeeded in the trail running, this will carry on to the production, the sales, the machining and the service.

Euipped the new foundry with new equipment and machinery

The total investment for Hengong is $25million, covering an area of 106 mu with a total floor area 60, 000 sqms. Hengong has an annual capability of 100, 000 tons for bar production and 50, 000 tons for machining. To achieve this goal, Hengong has equiped the new foundry with new equipments and machinery and increased the experienced technical team.

Takes over from Dazzling so many years of experience in the manufacturing, machining and aftersales service of all these functions.

Owning Seven Horizontal Continuous Casting Production Lines

Currently, we own seven horizontal continuous casting production lines with the abilities to produce ductile iron, gray iron, alloy cast iron with sizesΦ 20mm to 500mm, especially can also produce similar products with corresponding size, shaped cross-section, high intensity and high density.

Compared with other special steel, Hengong bars has lots of superior characters as follows:

1. With particularly pure material, without defects such as slag inclusion, sand inclusion and air holes.

2. High comprehensive mechanics, especially with the notable raise for the character of the toughness and fatigue resistance.

3. Homogeneous structure, excellent pressure resistance and compactness.

4. The material with high precision, less machining allowance, high smooth finish surface for the machining.

5. Hollow section with all the above advantages, however with higher density uniformity, as long as the pressure resistance and compactness.

Furnished with more than 100 sets of Machinning Equipment

Hengong has been furnished with all kinds of machining equipment, with more than 100 sets of lathes, drilling machines, milling machines and grinders etc. To ensure the capability of machining.

On base of advanced technology and technical force, Hengong also strictly execute according to the ISO9001quality control system to ensure the machining quality.

With all the achievements, Hengong has become the unique supplier for continuous casting iron bars manufacturing and maching in the same field which has ranked Hengong at a leading position in the intense market competition.
