| Prod Model: |
UL+Z-1800+255/4+8 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Continuous Casting And Rolling Machine: |
for Copper Rod |
Product Description
UL+Z-1800+255/4+8 Copper Rod Continuous Casting & Rolling Line
(New Product of the Third Generation)

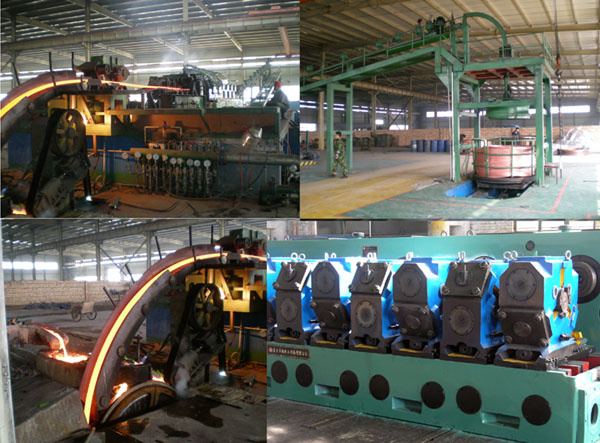

The line is composed of melting shaft furnace, tilting-type holding furnace, casting machine, automatic shearer, ancillary hydraulic shearing, straightener&edge shaver, cast bar brushing machine, rolling machine, lubrication oil system, emulsion system, restoration and cooling device for copper rod, rod orbital coiler and electrical control system, etc.
The line can equip different kinds of copper furnace according to various raw materials;
The line can produce ETP and FRHC with dia. 8mm;
The continuous casting and rolling machine possesses the patent right(the patent No. Is: Zl00244512.3);
The transmission system adopts full-digital speed adjusting of DC motor;
The crystallization wheel is H-type, because of the cooling from four sides, the ingot possessed the compact and regular structure;
The line adopts PLC and human-computer interface touch screen, so can show the operating parameter and malfunction of the equipment.
Particular rolling method which combines the 2-high mould with 3-high mould.

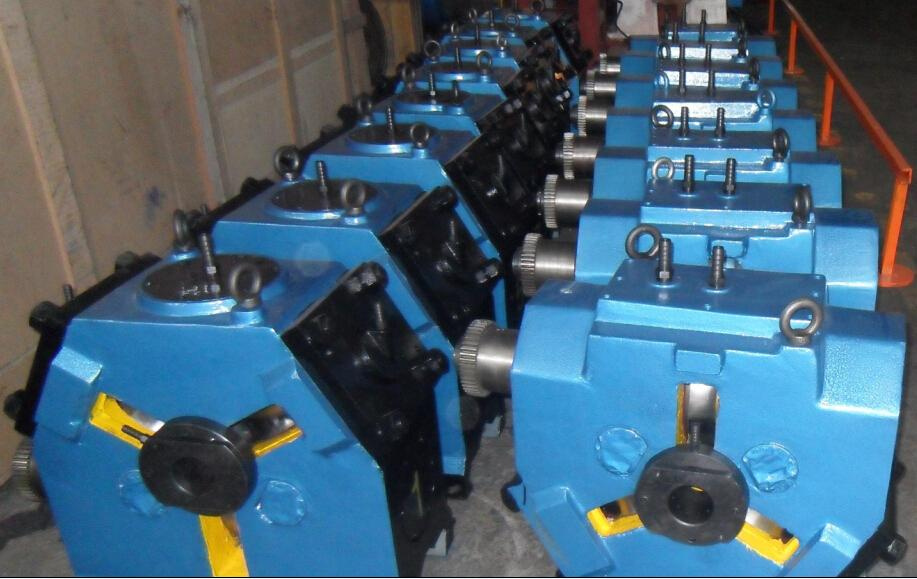

| Rolling Mill | Type | 2-high mould in rough rolling stand |
| 3-high mould in finish rolling stand |
| Outlet rod dia. | Φ 8mm |
| No. of rolling stand | 12(4+8) |
| Rollers' dia. | Φ 255mm |
| Finished rolling speed | 7~10m/s |
| Production capacity | 12~15t/h |
| Ceter height | 1902.5mm |
| Main motor | 450kW(DC) |
| Emulsion consumption | 80m³ /h |
| Casting Machine | Casting ring dia. | Φ 1800mm |
| Casting bar speed | 10.1~15.5m/min |
| Casting bar section | 2250mm² |
| Water consumption | 100m³ /h |
| Motor for casting ring | 5.5kW |
| Motor for pinch roller | 15.5kW |
| Automatic Shearer | Shearing length | ~700mm |
| Motor | 15kW |
| Straightener & edge shaver | No. of straightening roller | 5 |
| No. of shaving tools | 4 |
| Cast bar brushing machine | No. of brushing rollers | 4 |
| Motor | 0.75kW |
| Rod cooling and surface treatment unit | Max. coolant flow-rate | 100m³ /h |
| Coolant pump motor | 37kW |
| Water consumption | 60m³ /h |
| Rod orbital coiler | Pulling speed | 11m/s |
| Pulling motor | 5.5kW |
| Coil' s size | Φ 1400m |
| Laying head motor | 5.5kW |
| Collecting basket | Φ 1800× 1500mm |
| Coils' weight | 3000~5000kg |
We, Deyang Dongfang Zhuoyue Electrotechnical Equipment Co., Ltd are located in Deyang of China, the major technology and equipment manufacturing base. Now, our manufacturing factory building covers an area of more than 10, 000 square meters. We have more than 100 sets of large and medium-sized processing and manufacturing equipment, and a well-trained design, marketing, managing, machinery processing and equipping team composed of nearly 200 people.
We can manufacture various of complete plant(the latest model in domestic market), such as, Aluminium&Alloy Rod Continuous Casting And Rolling Line, Copper Rod Continuous Casting and Rolling Line, Tubular Stranding Machine, Rigid Frame Stranding Machine, Continuous Lead Extruding Line, Straight-line Aluminium &Alloy Rod Breakdown Machine, Straight-line Copper Rod Breakdown Machine, etc.
We have strong production ability and excellent sales team, we sell our products to our user directly, also, we always sell our products by some trading company or middle trader. We exported so many products to other countries such as Kazakhstan, Indonesia, India, Thailand, Korea, Ukraine, Mexico, Brazzil, Vietnam, Argentina, Kenya and so on.
We would like to provide the high-quality products and the good service, meanwhile, we will quote you the lowest market price.
We will be together with all the staff and workers, wholeheartedly offer our service, wait for your presence and stride forward with you hand in hand towards a brighter future.
