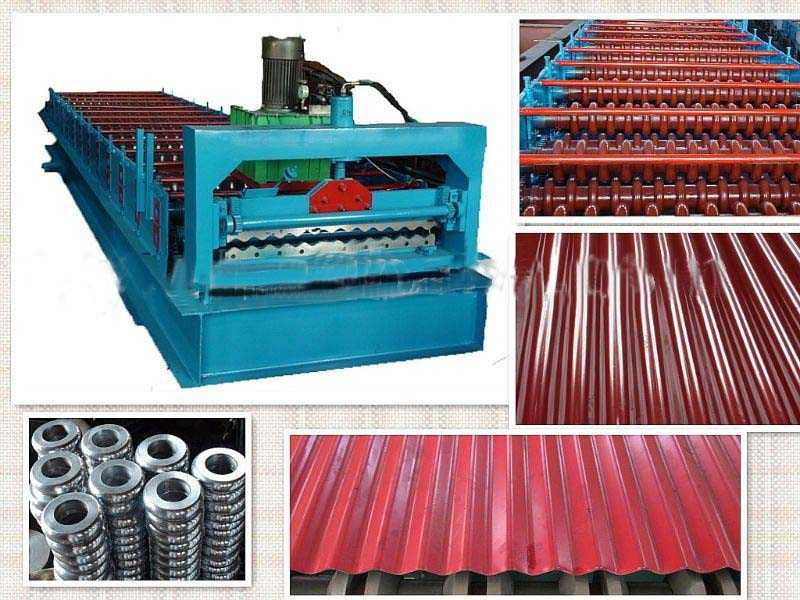

Corrugated Roll Forming for SB12-65-850

Corrugated Roll Forming for SB12-65-850
Price: US $ 7000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Prod Model: SB850
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Can Paint as Your Requirement
Voltage: 380V 50Hz
Warranty: 12 Monthes
Control System: PLC Control
Type: Building Machine

Product Description

Main forming machine
Forming size: 5500mm*1300mm*1200mm
Feeding width: 1000mm
Equipment weight: 3.0T
Material of shaft: 45#steel adjustable treatment
Out diameter of shaft: φ 70mm
Material of roller: Cr12, quenched treatment HRC58-60° C
Number of forming rollers: 13 rows
Main frame: 300 H steel
Thickness of medium plate: 12mm
Transportation system: Chain transportation
Thickness of chain: 1 inch
Main motor power: 3 KW
Pump station power: 3 KW
Forming speed: 8000-10000mm/min
Rolling thickness: 0.3-0.8mm
Material  of  blade Gr12, heat  treatment  60-62° C
Shearing  system It  is  controlled  by  gear  wheel  oil  pump.   After  filling  the  hydraulic  oil  into  the  hydraulic  oil  tank,   the  pumps  drive  the  cutter  machine  to  begin  the  cutting  job.
The  system  includes  a  set  of  hydraulic  tank,   a  set  of  hydraulic  oil  pump,   two  hydraulic  pipes.   And  two  sets  of  electromagnetism  valves.
Power  of  the  oil  pump:   4kw
Hydraulic  oil  : 40#
Electrical  system
Screen  display 5.7  inches  Delta  touch  screen
Main  computer  control  cabinet It  adopts  industrial  computer  to  control.   The  target  piece’ s  length  is  adjustable  and  digit  of  it  can  be  adjusted.   Computed  mode  has  two  modes:   automatic  and  manual  one.   The  system  is  easy  to  operate  and  use.
Processing  precision  :   within  1.00mm
It  contains  liquid  crystal  screen,   programmer,   transformer  for  the  electronic  machines  and  kits  of  every  part.
Transducer  brand  is  Delta
The  seller  should  provide  Chinese  and  English  language  screen.

Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers

Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level

Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.

The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
