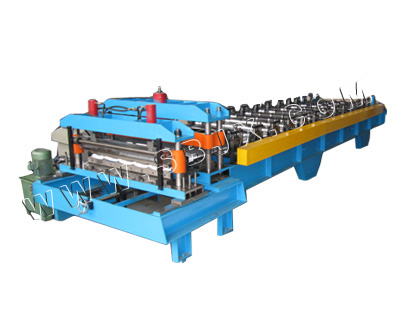

Single Press Mold Steel Tile Forming Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram |
| Prod Model: |
YX25-183.3-1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue and Yellow |
| Forging Forming Method: |
Mold Forging |
Product Description
Product name: Single press mold steel tile forming machine
Description:
A: Roll forming main machine
1: Coil width: 1250mm cover width: 1100mm
2: Working speed: 2-3m/min
3: Roll station: 16stations
4: Material of roller: 45#forge steel, polished and coated with chrome
5: Material of main shaft: 45forge steel diameter roller: 76mm
6: Main power: 5.5kw
7: Forming thickness: 0.4mm_0.6mm color steel and galvanized steel
8: Transmission: By chain
9: Size of machine: 8500x1400x1200(mm) L x W x H
10: Weight: About 6000Kgs
11: Color of machine: Yellow and blue ( it is also can changed depend on customer request)
12: Cutting:
(1)Flat-sheet cutting: It is used when changing the coil of raw material; It can cut the coil rapidly and time-saving.
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: CR12with heat treatment
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: +/- 1.5mm
B. Uncoiler
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 1300mm
Capability: 5 Ton
Bound of expand &fight: 450mm_550mm
Mode of expand &fight: Inner expand &fight by manual
Way of feeding: Manual
C: Control panel Panasonic
(1)Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7)Unit of length: Millimeter (switched on the control panel)
D: Hydraulic station
1: Hydraulic station power: 4kw
2: Hydraulic pressure: 12Mpa
E: Manual out table
(1)Jointed by 60mm*40mm tube
(2)Size: 1.0m long*0.8mwide*0.6-1mhigh
(3)One out table with two support roller
