| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue or as The Client's Demand |
| Control System: |
PLC |
| Voltage: |
380V, 50Hz |
| Main Motor Power: |
3kw with Cycloidal Reducer |
| Type: |

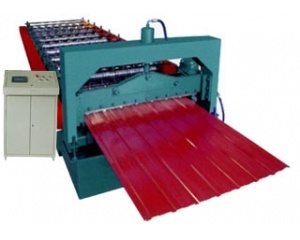

Roll Forming Machine |
Product Description
MACHINE COMPONENTS:
(1) Un-coiler 1 set
(2) Roll-Forming M/C 1 set
(3) Hydraulic die 1 set
(4) Hydraulic Cutting 1 set
(5) PLC Control System 1 set
TECHNICAL SPECIFICATION
(1)Un-coiler:
Un-powered; Single head; Max. Capacity: 5000kg;
Coil inner-diameter: 508mm
(2) Roll-Forming M/C:
13-step to form, Material of Roller: 45# steel
Voltage: 380V/50Hz.
Line speed: 8-10m/min;
(3) Pressing die
Stop to press, Post to press, Depth of the stair is 25mm. (4) Hydraulic Cutting
Stop to cut, Post cut;
Cutting tool material: GCr12, cutting length tolerance ± 2mm;
(5) PLC Control System:
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen,
Option Hydraulic un-coiler
Hydraulic system to expand coil inner hole;
Power of the pump: About 2 kw
Frequency Inverter to regulate turning speed, Automatic stop device;
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
Suitable accommodation and pay the service fee to the technician with $50/days
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
