| Prod Model: |

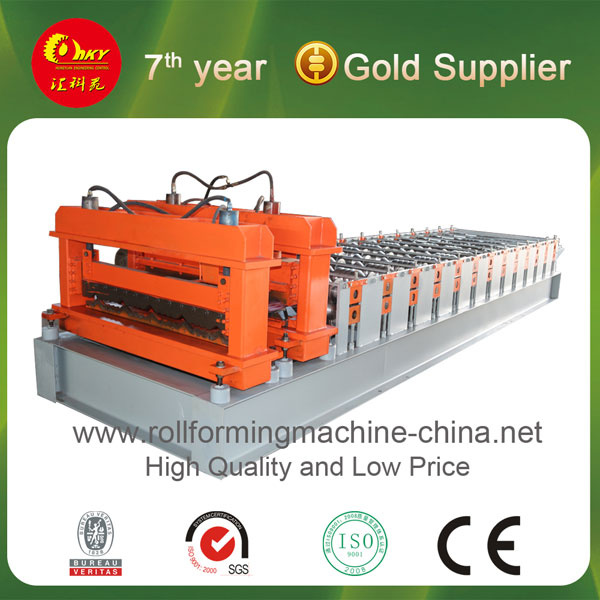

HKY 1100 Arc Bias Glazed Tile |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Motor Power: |
4kw |
| Hydraulic Station Power: |
3kw |
| Installation Dimension: |
6.5m*1.5m*1.4m |
| Thickness: |
0.3-1mm |
| Coil Width: |
1250mm |
| Forging Forming Method: |
Roll Forming Machine |
Product Description
HKY 1100 Arc Bias Glazed Tile Roll Forming Machine, Glazed Tile Roll Forming Machine, Roll Forming Machine, Arc Bias Roll Forming Machine, Glazed Tile Roll Forming Machinery, Glazed Tile Rolling Former Machine
Work Flow
Decoiling--feeding---forming--profiling--cutting---finished product
Equipment Parts
Decoiler, roll forming machine, hydraulic cutting device, electric system(PLC control system), hydraulic system, stacker.
Technical parameters:
1. Main Motor Power: 5.5kw
2. Hydraulic Station Power: 4kw
3. Sprocket: P-25.4
4. Forming Station: 12
5. Material of Roll: 45#steel hard chrome plate
6. Length of Production Line: 10m
7. Installation Dimension (L*W*H): 8.5m*1.5m*1.4m
8. Diameter of Principal Axis: 80mm
9. Hydraulic Oil Pump: CB-E310
10. Material of Blade: Cr12
11. Thickness: 0.3-1mm
12. Length of Tolerance: ± 2mm
13. Cover Width: 1100mm
14. Coil Width: 1250mm
15. Processing Speed: 2-4m/min
16. Total Weight: 4.8T
17. Equipment Parts: 5T decoiler, roll forming machine, forming press system, hydraulic system, computer control and counter.
We'd like to produce the Steel Building Products Making Machines with your creation!
You can send me the profile drawing. And I will make a good quotation for you.
You are welcome to visit our facory in Hebei China!
Contact Person:
Carol Li
Tel: +86 317 3087243
Fax: +86 317 3087243
Cel: +86 15503170289
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
