| Prod Model: |
D8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
2 |
| Rated Voltage(V): |
3*380/220 |
| Rated Current(a): |
3*5, 3*10, 3*15, 3*20, 3*25, 3*30, 3*40, 3*60 |
| Connection Mode: |
Directly Input |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Multi-rate Watt-hour Meters |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
Product Description

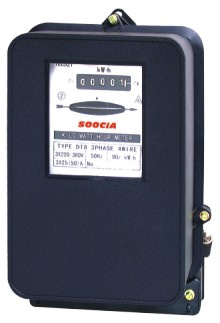

D8 series three-phase watt-hour meter
1.Brief introduction
D8 series three-phase watt-hour meter is a induction meter, which is applicable to measure the rated frequency 50Hz and power loss of active energy meter. The series active energy meters are completely conformed to National Standard GB/T 17215.321-2008 class0.5,1and 2 AC active watt-hour meter and international standard IEC521..
2.Function and features
-Sub-closed iron core the die-casting frame is made of alloy aluminum, to assure the magnetic line stably and reliably.
-Meter bearing has two kinds, may select dual jewel or magnetic thrust
-May select 5+1 digits register
-May select 5 kinds of cases: Bakelite, PC, ABS plastic, glass and Aluminum
3.Main Technical Data
Name: three-phase Four-wire reactive watt-hour meter
Type: DT8
Accuracy:2
Rated voltage(V):3*380/220
Rated Current(A):3*5, 3*10, 3*15, 3*20, 3*25, 3*30, 3*40, 3*60, 3*80, 3*100, 3*120
Connection mode:directly input
Zhejiang Songxia Electric Meter Co., Ltd. is recommend by the national economy and commerce authority department, founded in 1992, is one of the earliest manufacture in our city, and also the largest export company in the field of meters in Wenzhou. Of the earliest manufacture in our city, and also the largest export company With building area of more than 12000m2 and kinds of high precision specialized equipment. High and new-technology industries and advanced technology use in our many kinds of products. Our products have more than 40 national certificates authorized by the national technology management. We get export certificate from 1999 and our products are very popular and famous in domestic markets, export to many countries and areas such as Pakistan, Nepal, Thailand Bangladesh, Philippine, ltaly, Sudan, Taiwan, etc. Of the earliest manufact.
Our company is established in high-tech and best quality, recognition the customer is the most important, quality is the best, service is the best and credit standing is the best, and we carry out these in our production, Supply and distribution. Our company has perfect quality system. It has passed the ISO9001 Quality System, CCC Quality certificate and KEMA Quality certificate, carrying out currently national standard and International Electro Technical Commission IEC521 standards strictly. With outstanding achievements, our company has got many honorary titles by our government such as Abide by contract, keep promise enterprise, Outstanding enterprise, Consumer recommends goods, Quality brand in Zhejiang Province etc.
We stillcarry on the developmentand research of new products constantly; Absorbing advanced technology and modernized technology equipments and management. We will abide by quality promise with the sprite of expanding, innovating quality, and marketing. Songxia will be more powerful and good further by your support.
