| Prod Model: |
D86-K Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
Digital |
| Installation: |
General Installation Meter |
| Usage: |
Standard Electric Energy Meter |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Machine-electric Type |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |

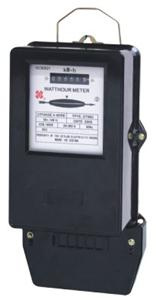

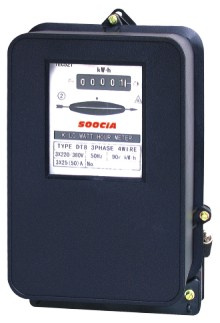

Product Description
Product brief introductionD86-K type meter is similar to the original D86 series with pulse device in addition, it adopts the special socket for pulse output line, is suitable to mount On switch panel. It is suitable to measure active and reactive energy. It also Accords with GB/T15283-1994 Class 0.5, 1 and 2 AC Active Watt-hour Meter and GB/T15282-1994 Reactive Watt-hour Meter In order to satisfy newly
Energy measurement, we specially produce the In-build Multi-rate series (DF86-K) and In-build Pulse series (DM-86K) Watt-hour Meter.
Function and features* Sub-closed electromagnetic core
* the die-casting frame is made of alloy aluminum, assure magnetism
Stable and reliable;
* Meter bearing has three kinds, may select dual jewel, magnetic thrust or
Magnetic float; May select 5+1 digits or 4+1 digits register.
Main Technical Data| Name | Type | Accuracy | Rated Voltage(V) | Rated Current(A) | Connection Mode |
| Three-phase four-wire in-build active watt-hour meter |
DT862-K
| 2 | 3*220/380
3*57.5/100 | 3*1(2),3*3(6),3*1.5(6) | Input through current transformer |
| DT864-K | 1 | 3*5(20),3*10(40),3*15(60),3*20(80),3*30(100) | Directly input |
| 3*1(2),3*3(6),3*1.5(6) | Input through current transformer |
