| Prod Model: |
DD862-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
Class2 |
| Voltage: |
220~240V |
| Current: |
5(15), 15(45), 30(100)a |
| Starting Current: |
0.5%Ib |
| Overload Capacity: |
4~6ib |
| Insulation Performance: |
AC Voltage 2kv for 1 Min Impulse Voltage 6kv |
| Display: |
Indicator |
| Installation: |
Direct Connected |
| Usage: |
Standard Electric Energy Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Machine-electric Type |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
| Certification: |
CCC |
Product Description
Main function:

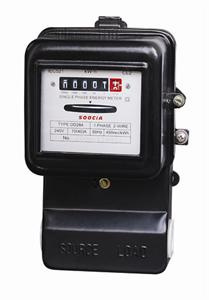

DD862 series type meter is designed for high load, low power loss, and economize on energy feature. Accommodate the rate frequency is 50HZ and in single phase AC electric wire to consume the electric energy.
Features:
- Sub-closed iron core
- the die-casting frame is made of allou aluminum to assure the magntic line stabe and reliable
-Meter bearing has three kinds: dual jewel, magnetic thrust or magnetic float
- May select 5+1 digits or 5 digits register

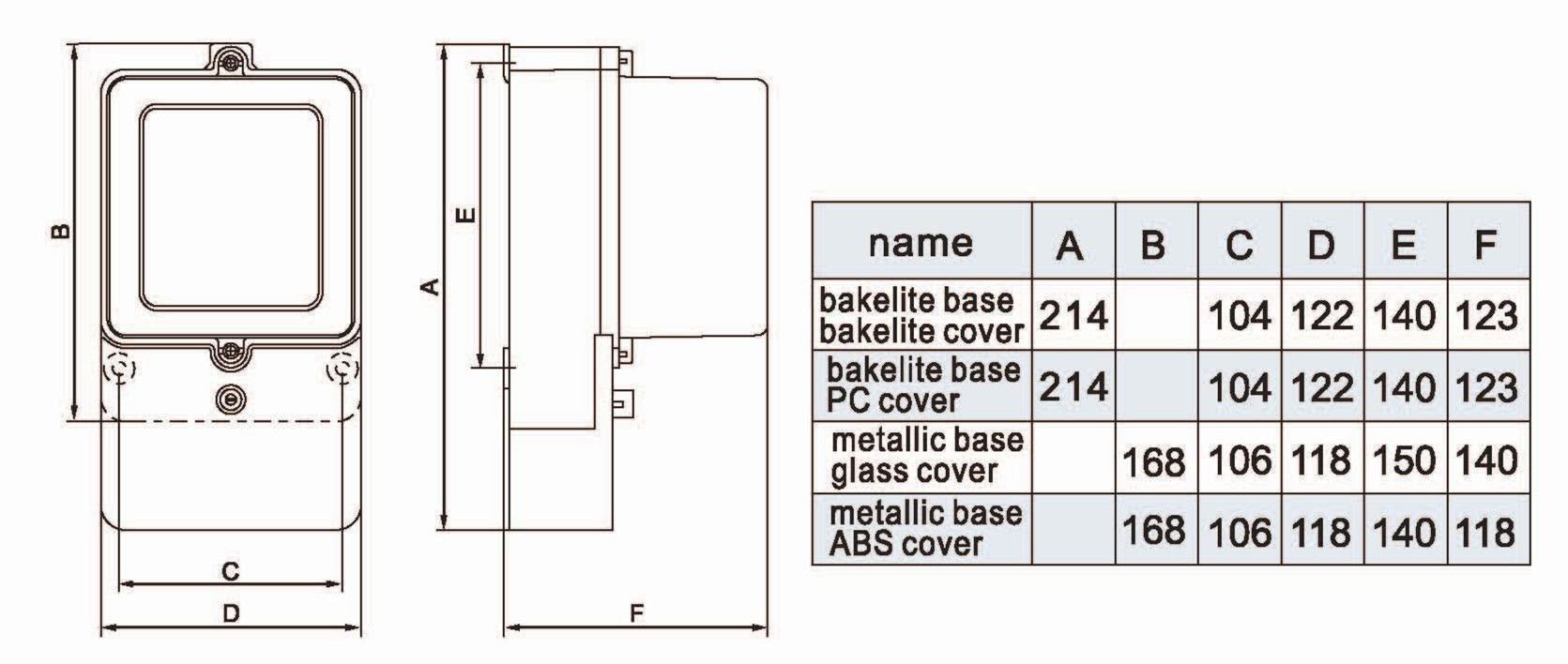

- May select 5 kinds of cases: bakelite, PC, ABS plastic, glass and aluminum
