| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 500KG |
| Pay Type: | T/T,Western Union |
| Prod Model: | DIN 1.2083/AISI 420/S136/GB3 4Cr13 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: | DIN 1.2083/AISI 420/S136/GB3 4Cr13 |
| Diameter: | 150-600mm |
| Length: | 2500~4000mm or as Required |
| Package: | Export Standard Packing or Customers' Demand |
| Place Of Origin: | Shenzhen,China |
| Delivery: | 7-30 Days After Deposit |
| Standard: | BS |
| Technics: | Forged |
| Application: | Die Steel Bar |
| Alloy: | Alloy |
| Special Use: | Mold Steel |
| Surface: | Black or Machined Surface |

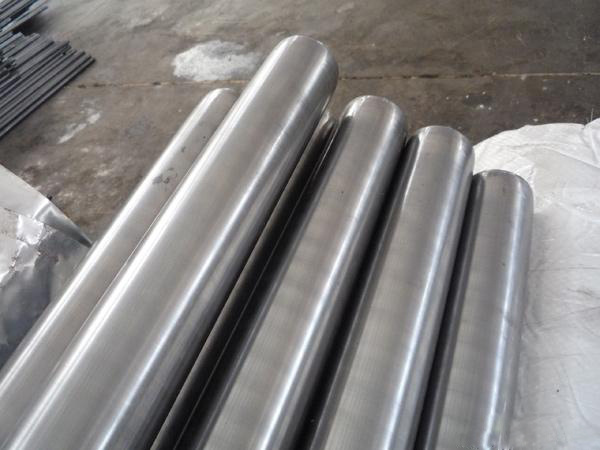

S136 Plastic Moud Forged Steel / Round Bar Steel / Mold steel / Die steel S136
Specification :
Diameter Length
Forged condition | ¢150~¢600 | 2500~4000 | Local mill with 6000tons fluid forged machine |
Description
1. DIN 1.2083/AISI 420/S136/GB3 4Cr13 Plastic mould steel , round bar
2. Delivery : forged condition, annealing or Pre-harden , black or machined surface
3.Hardness: ≤229HBS or 32~36HRC
4. smelting process:
Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface
5.hot treatment quench:1020-1050°C,oil cooling or quenching liquid colling,hardnessHRC≥45
backfire:temperture(°C): 100 200 300 400 500 600
hardness(HRC): 49 47 46 46 47 32
5.Production leadtime: 7~30 days
6. Chemical composition:
C | Si | Mn | P≤ | S≤ | Cr | Ni |
0.36-0.45 | ≤0.06 | ≤0.8 | 0.030 | 0.035 | 1.20-1.4 | ≤0.8 |
7.Compared grades(based on usage):
GB | ASTM | DIN | ASSAB |
4Cr13 | 420 | 1.2083 | S136 |
Applications:
Used for making the corrosion resistance and wear resistance of high quaity plastic mould, transport plastic mould, like PVC and CD mould.
Competitive Advantage:
1.Pure & Precision mirror polishing
2.Highly quality of corrosion resistance
3.Convenient heat treatment for quenched&tempered steel, with out deformed
4.Easy for welding
5.Competitive price
6.Fast production leadtime
